Relay-ASD/Main (Standard) Connector End View (R820)

Harness-Family: PDC_FRB

Color: NA

Gender: MALE

Part Number: Relay_Micro

Part Description: Not Available

Connector No: R820

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 5

Fig 1: Relay-Asd/main Connector End View (Standard)

Courtesy of CHRYSLER

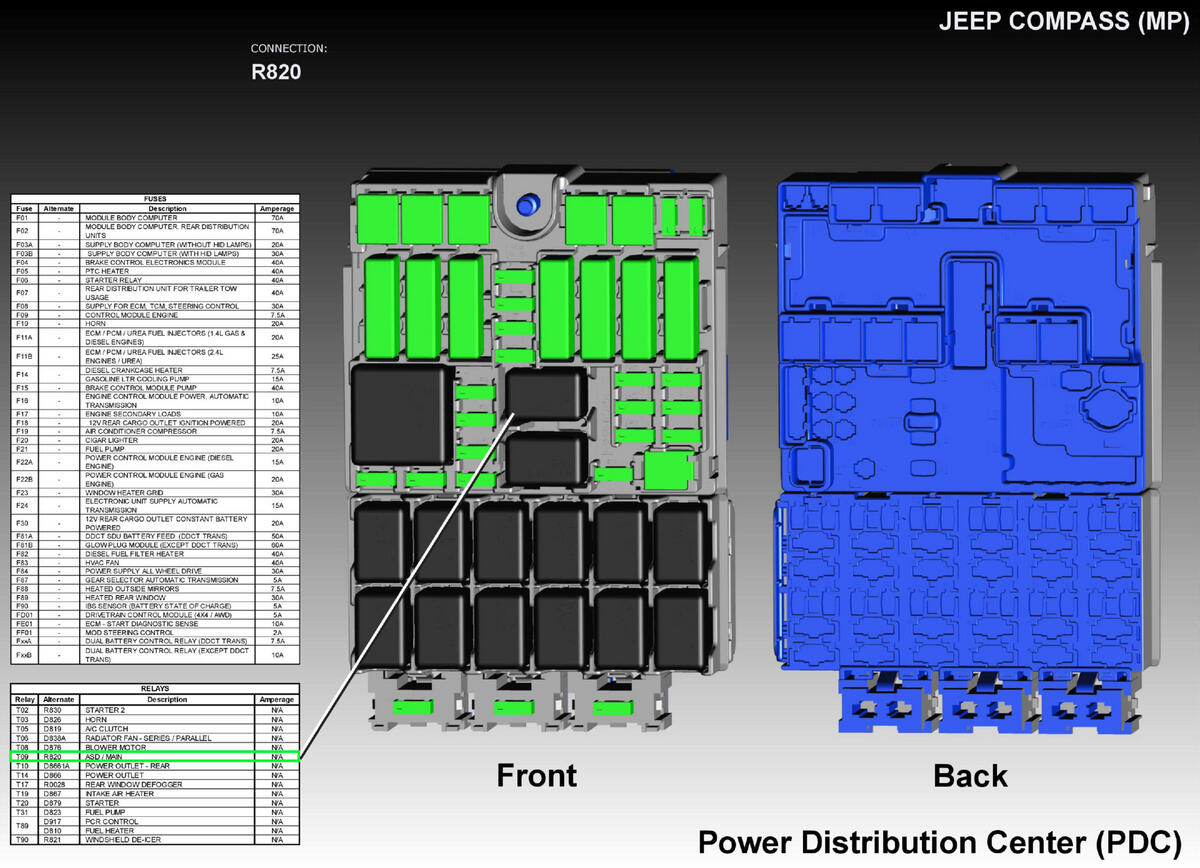

Fig 2: Relay-Asd/main Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
30	A1	INTERNAL	NA	FUSED B(+)	N/A
85	K51	INTERNAL	NA	ASD RELAY CONTROL	N/A
86	A908	INTERNAL	NA	FUSED B(+)	N/A
87	A111	INTERNAL	NA	FUSED B(+)	N/A
