Motor-Wiper-Rear (Standard) Connector End View (D3045A)

Harness-Family: Liftgate

Color: BLACK

Gender: FEMALE

Part Number: 1745068-1

Part Description: Not Available

Connector No: D3045A

Option: Standard

Repair Kit Part Number: 68265997AA

Cavity Count: 3

Fig 1: Motor-Wiper-Rear Connector End View (Standard)
GCWD1012770Courtesy of CHRYSLER

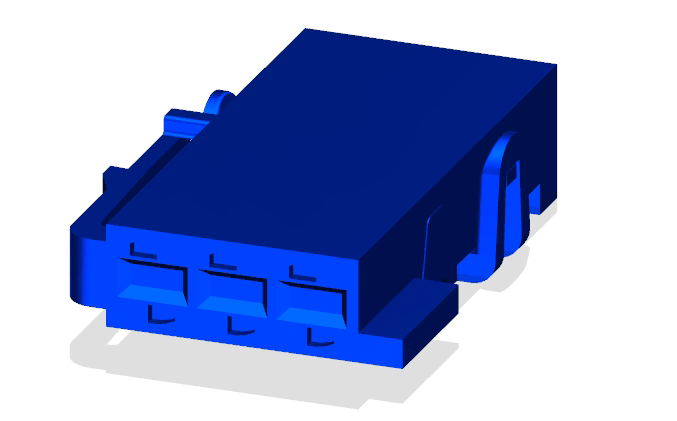

Fig 2: Motor-Wiper-Rear Isometric View (Standard)
GCWD1013153Courtesy of CHRYSLER
Fig 3: Motor-Wiper-Rear Wire Insertion View (Standard)
GCWD1007429Courtesy of CHRYSLER

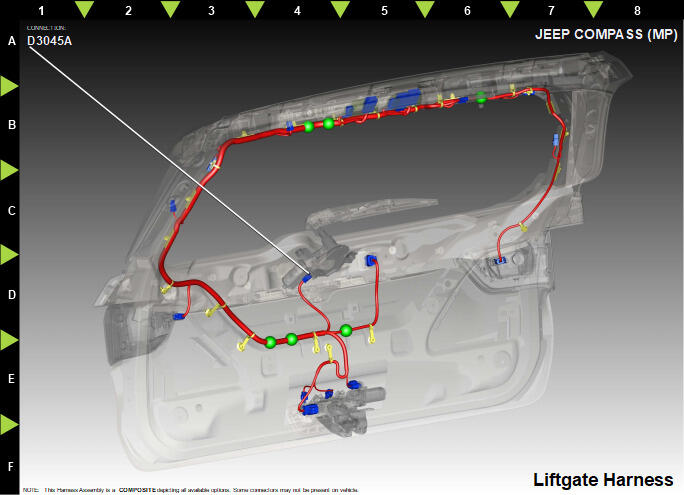

Fig 4: Motor-Wiper-Rear Component Location View (Standard)
GCWD1323615Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z943 BK 1.5 GROUND N/A
2 W17 BN/GN 0.50 REAR WIPER PARK SWITCH SENSE N/A
3 W13 BN/GN 1.5 REAR WIPER MOTOR CONTROL N/A
