Module-Park Assist C3 (Standard) Connector End View (D3867C)

Harness-Family: Body

Color: BLUE

Gender: FEMALE

Part Number: 7289-2897-90

Part Description: Not Available

Connector No: D3867C

Option: Standard

Repair Kit Part Number: 68030130AA

Cavity Count: 14

Fig 1: Module-Park Assist C3 Connector End View (Standard)

Courtesy of CHRYSLER

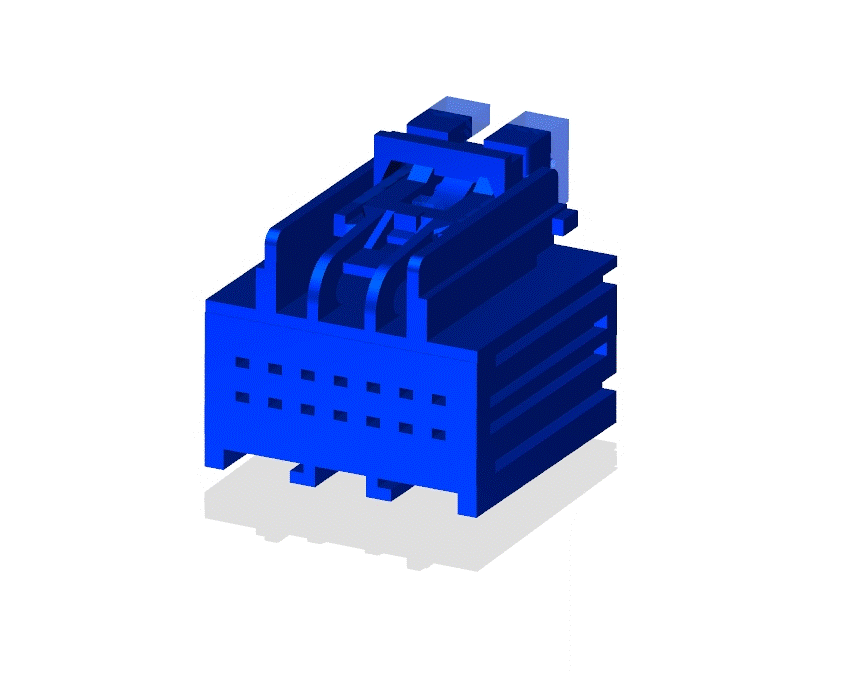

Fig 2: Module-Park Assist C3 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Park Assist C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

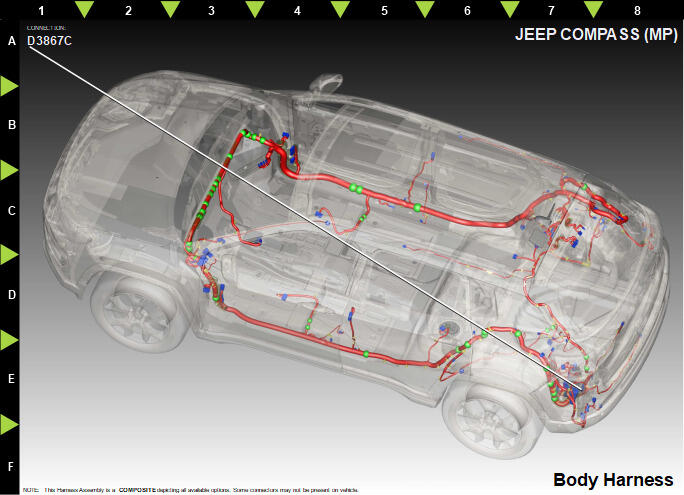

Fig 4: Module-Park Assist C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X702	GY/BU	0.35	FRONT PARK ASSIST SENSOR SUPPLY	N/A
3	D702	WH/YE	0.50	PARK ASSIST SIGNAL 1	N/A
4	D705	WH/OG	0.50	PARK ASSIST SIGNAL 2	N/A
5	D706	WH/BG	0.50	PARK ASSIST SIGNAL 3	N/A
10	D709	WH/BN	0.50	PARK ASSIST SIGNAL 6	N/A
11	D708	WH/BU	0.50	PARK ASSIST SIGNAL 5	N/A
12	D707	WH/GN	0.50	PARK ASSIST SIGNAL 4	N/A
13	X751	GY	0.35	FRONT PARK ASSIST SENSOR GROUND	N/A
