Module-Park Assist C2 (Standard) Connector End View (D3867B)

Harness-Family: Body

Color: GRAY

Gender: FEMALE

Part Number: 7289-2895-40

Part Description: Not Available

Connector No: D3867B

Option: Standard

Repair Kit Part Number: 68080558AA

Cavity Count: 8

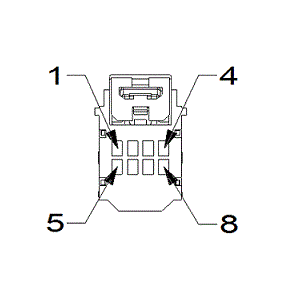

Fig 1: Module-Park Assist C2 Connector End View (Standard)

Courtesy of CHRYSLER

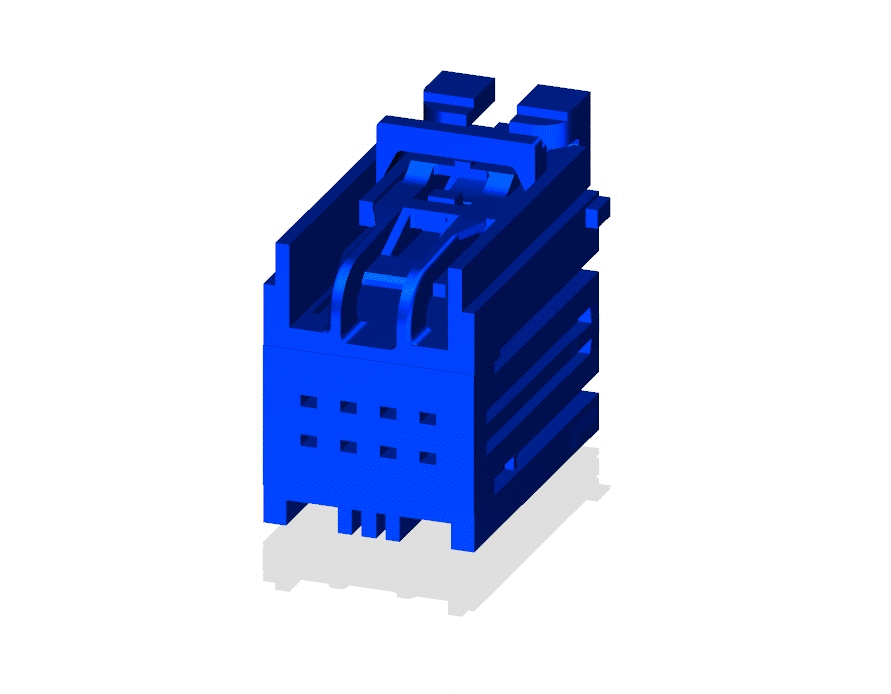

Fig 2: Module-Park Assist C2 Isometric View (Standard)

Courtesy of CHRYSLER

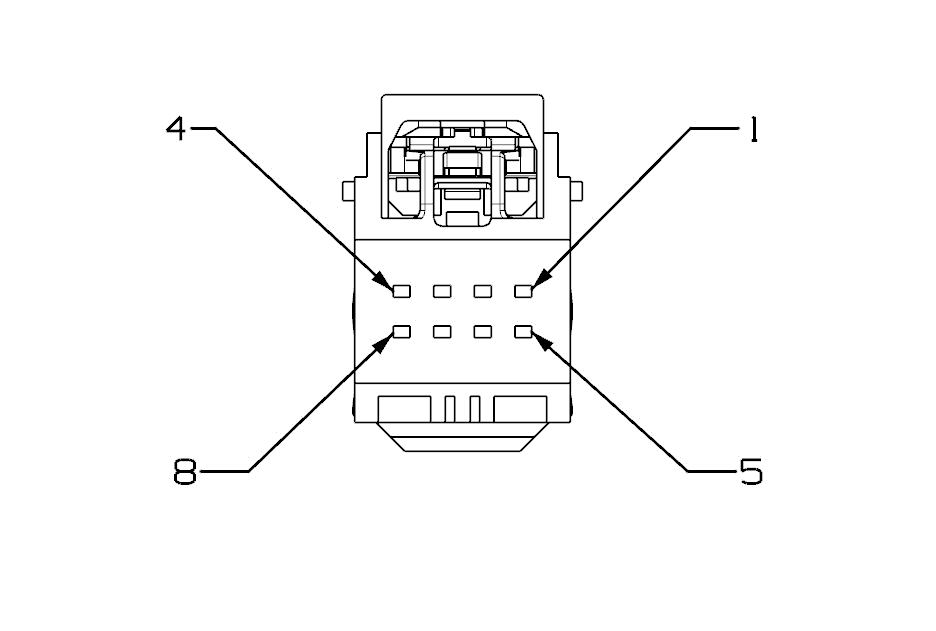

Fig 3: Module-Park Assist C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

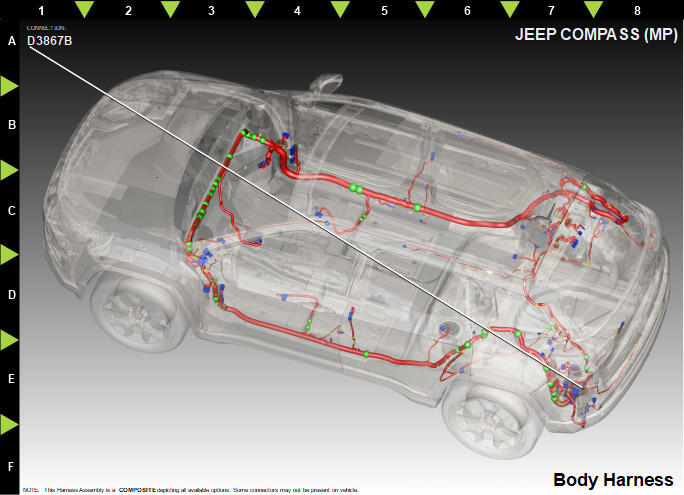

Fig 4: Module-Park Assist C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D701	WH/BU	0.50	PARK ASSIST SIGNAL 8	N/A
2	D703	WH/OG	0.50	PARK ASSIST SIGNAL 9	N/A
3	D704	WH/DG	0.50	PARK ASSIST SIGNAL 10	N/A
4	X700	GY/OG	0.50	REAR PARK ASSIST SENSOR SUPPLY	N/A
5	D710	WH	0.50	PARK ASSIST SIGNAL 11	N/A
6	D712	WH/DB	0.50	PARK ASSIST SIGNAL 12	N/A
7	D700	WH/GY	0.50	PARK ASSIST SIGNAL 7	N/A
8	X750	GY/BU	0.50	REAR PARK ASSIST SENSOR GROUND	N/A
