Module-Heated Seats C6 (Standard) Connector End View (D3846F)

Harness-Family: Seat_Pass

Color: NATURAL

Gender: FEMALE

Part Number: 2-1564013-1_965601-3

Part Description: Not Available

Connector No: D3846F

Option: Standard

Repair Kit Part Number: Terminal Kits Only

Cavity Count: 8

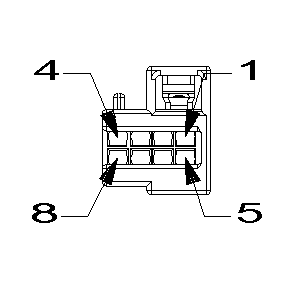

Fig 1: Module-Heated Seats C6 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Heated Seats C6 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Heated Seats C6 Wire Insertion View (Standard)

Courtesy of CHRYSLER

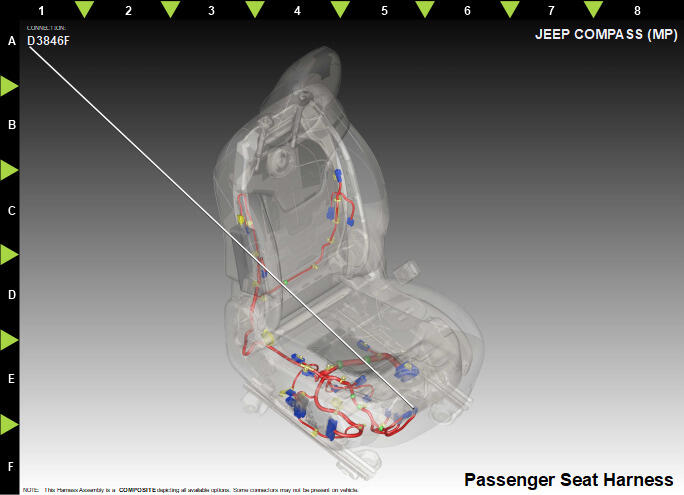

Fig 4: Module-Heated Seats C6 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	P922	BN/GN	0.35	RIGHT SEAT VENT RETURN	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	P921	OG/GN	0.35	LEFT SEAT VENT RETURN	N/A
