Module-Heated Seats C1 (Standard) Connector End View (D3846A)

Harness-Family: Seat_Pass

Color: BLACK

Gender: FEMALE

Part Number: 1-2177196-1_2177231-1

Part Description: Not Available

Connector No: D3846A

Option: Standard

Repair Kit Part Number: 68535909AA

Cavity Count: 5

Fig 1: Module-Heated Seats C1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Heated Seats C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Heated Seats C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

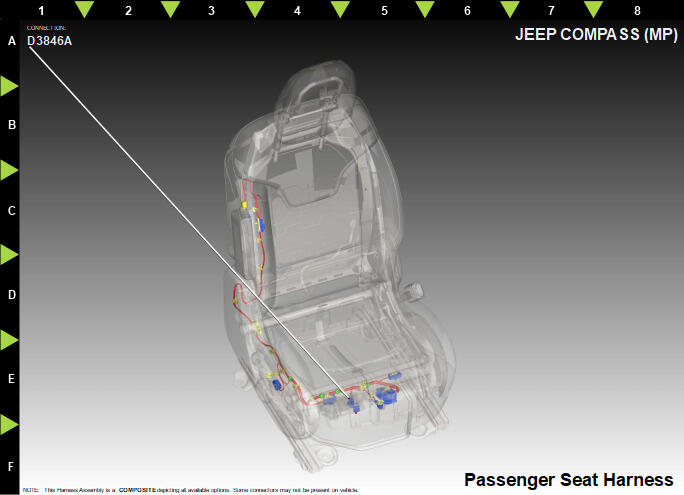

Fig 4: Module-Heated Seats C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D163	WH/DB	0.50	CAN IHS (+)	N/A
2	D164	WH	0.50	CAN IHS (-)	N/A
3	N0	NA	0	NO CONNECT	N/A
4	F943	PK/GN	1.5	FUSED IGNITION	N/A
5	Z934	BK	1.5	GROUND	N/A
