Module-Anti-Lock Brakes (Standard) Connector End View (D3863A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 1_928_405_783-1_928_405_782

Part Description: Not Available

Connector No: D3863A

Option: Standard

Repair Kit Part Number: TBD Grp36-11

Cavity Count: 46

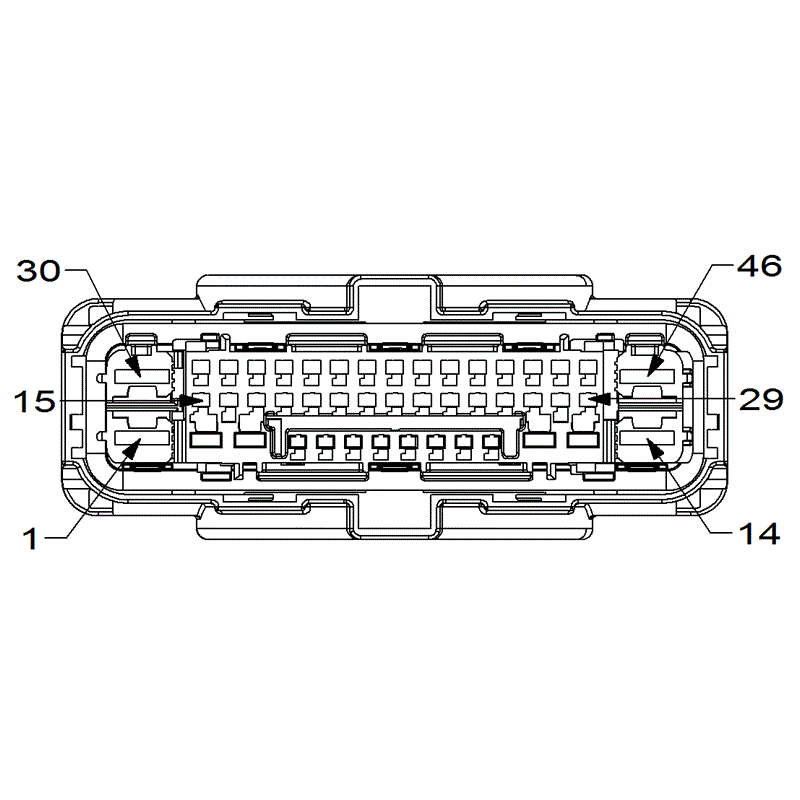

Fig 1: Module-Anti-Lock Brakes Connector End View (Standard)

Courtesy of CHRYSLER

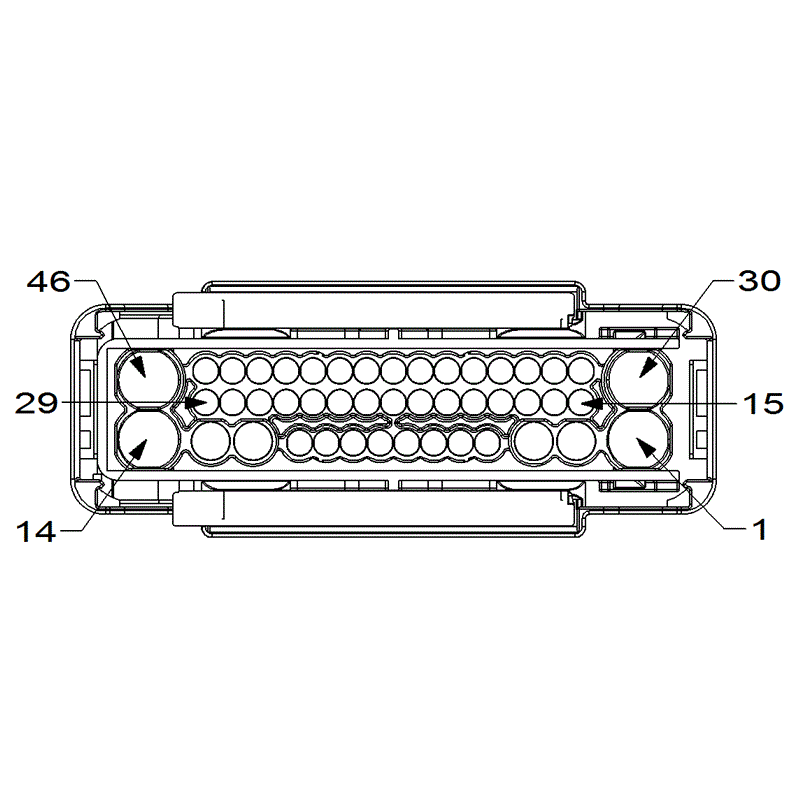

Fig 2: Module-Anti-Lock Brakes Isometric View (Standard)

Courtesy of CHRYSLER

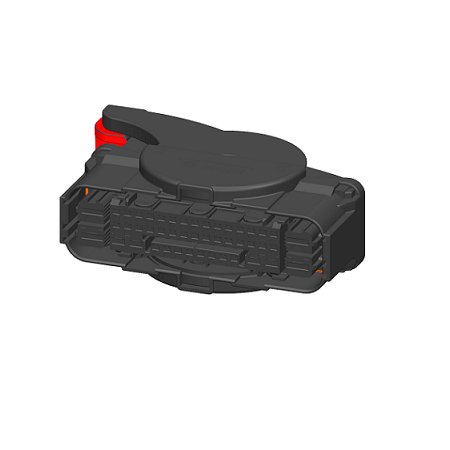

Fig 3: Module-Anti-Lock Brakes Wire Insertion View (Standard)

Courtesy of CHRYSLER

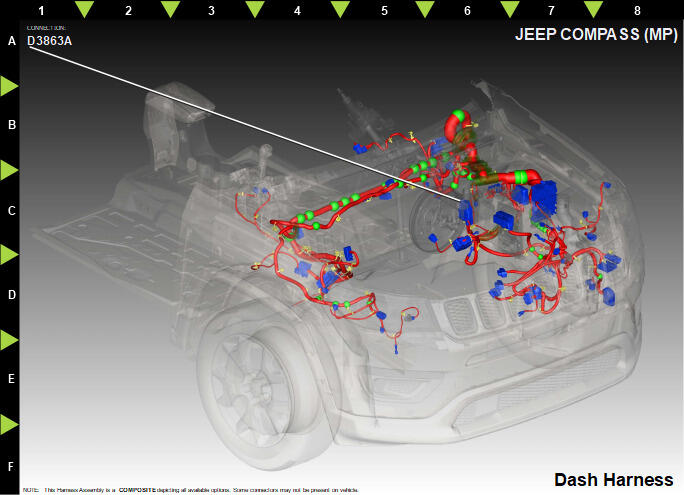

Fig 4: Module-Anti-Lock Brakes Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A107	BG/RD	4.0	FUSED B(+)	N/A
2	B64	DG/BG	2.5	RIGHT EPB ACTUATOR A CONTROL	N/A
3	B66	DG/BN	2.5	RIGHT EPB ACTUATOR B CONTROL	N/A
4	B6	DG/WH	0.35	RIGHT FRONT WHEEL SPEED SENSOR (-)	N/A
5	B7	DG/VT	0.35	RIGHT FRONT WHEEL SPEED SENSOR (+)	N/A
6	B3	DG/YE	0.35	LEFT REAR WHEEL SPEED SENSOR (-)	N/A
7	B4	DG/GY	0.35	LEFT REAR WHEEL SPEED SENSOR (+)	N/A
8	B8	DG/BG	0.35	LEFT FRONT WHEEL SPEED SENSOR (-)	N/A
9	B9	DG/GN	0.35	LEFT FRONT WHEEL SPEED SENSOR (+)	N/A
10	B1	DG/OG	0.35	RIGHT REAR WHEEL SPEED SENSOR (-)	N/A
11	B2	DG/BU	0.35	RIGHT REAR WHEEL SPEED SENSOR (+)	N/A
12	B65	DG/OG	2.5	LEFT EPB ACTUATOR B CONTROL	N/A
13	B63	DG	2.5	LEFT EPB ACTUATOR A CONTROL	N/A
14	Z913	BK	4.0	GROUND	N/A
15	D497	DB/WH	0.35	CAN CH (+)	N/A
16	D498	YE	0.35	CAN CH (-)	N/A
17	B68	DG/BU	0.35	EPB SWITCH POSITION 3 SIGNAL	N/A
18	B67	DG/GY	0.35	EPB SWITCH POSITION 2 SIGNAL	N/A
19	B70	DG/WH	0.35	EPB SWITCH POSITION 5 SIGNAL	N/A
20	B71	DG/YE	0.35	EPB SWITCH POSITION 6 SIGNAL	N/A
21	N0	NA	0	NO CONNECT	N/A
22	B27	DG/WH	0.35	TRACTION CONTROL SWITCH SENSE	N/A
23	N0	NA	0	NO CONNECT	N/A
24	B60	DG	0.35	EPB SWITCH POSITION 1 SIGNAL	N/A
25	G63	VT	0.35	EPB INDICATOR SIGNAL	N/A
26	B69	DG/GN	0.35	EPB SWITCH POSITION 4 SIGNAL	N/A
27	N0	NA	0	NO CONNECT	N/A
28	N0	NA	0	NO CONNECT	N/A
29	N0	NA	0	NO CONNECT	N/A
30	A200	RD/DG	4.0	FUSED B(+)	N/A
31	N0	NA	0	NO CONNECT	N/A
32	N0	NA	0	NO CONNECT	N/A
33	B22	DG/GN	0.35	VEHICLE SPEED SIGNAL 1	N/A
34	B32	DG/OG	0.35	VACUUM PRESSURE SENSOR SIGNAL	N/A
35	F941	PK/WH	0.35	IGNITION RUN/START CONTROL OUTPUT	N/A
36	N0	NA	0	NO CONNECT	N/A
37	N0	NA	0	NO CONNECT	N/A
38	N0	NA	0	NO CONNECT	N/A
39	N0	NA	0	NO CONNECT	N/A
40	N0	NA	0	NO CONNECT	N/A
41	B31	DG/DB	0.35	VACUUM PRESSURE SENSOR SUPPLY	N/A
42	D37	BN/YE	0.35	CAN C (+)	N/A
43	D38	YE	0.35	CAN C (-)	N/A
44	N0	NA	0	NO CONNECT	N/A
45	B33	DG/BG	0.35	VACUUM PRESSURE SENSOR RETURN	N/A
46	N0	NA	0	NO CONNECT	N/A
