Generator C1 (2.4L) Connector End View (D3000A)

Harness-Family: ALTERNATOR_TIG

Color: NA

Gender: FEMALE

Part Number: R8380

Part Description: Not Available

Connector No: D3000A

Option: 2.4L

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: Generator C1 Connector End View (2.4L)
GCWD1011197Courtesy of CHRYSLER

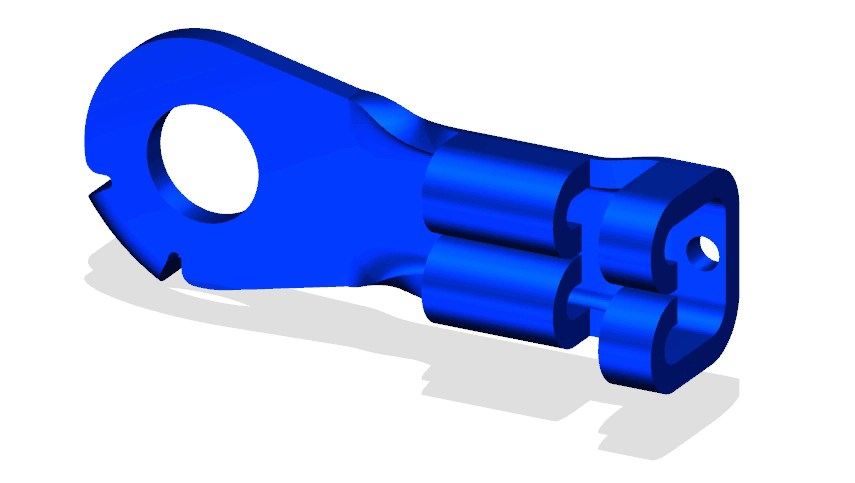

Fig 2: Generator C1 Isometric View (2.4L)
GCWD1012856Courtesy of CHRYSLER

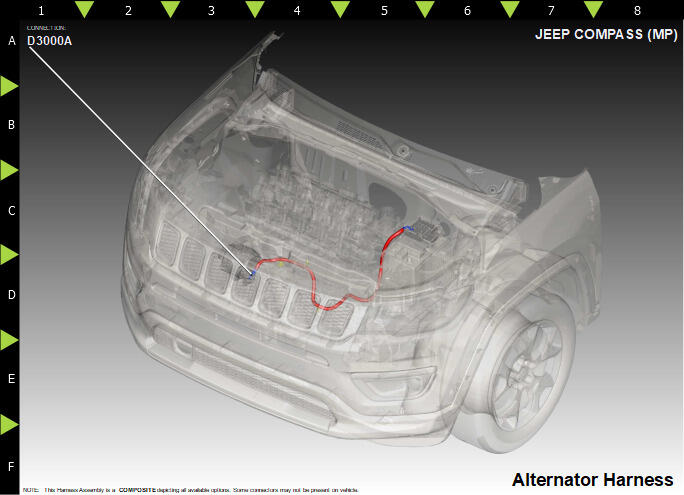

Fig 3: Generator C1 Component Location View (2.4L)
GCWD1323459Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A801 RD/GY 2 B(+) N/A
