Fuse FH2 20A (Standard) Connector End View (FH2)

Harness-Family: PDC_HID

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: FH2

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

Fig 1: Fuse Fh2 20a Connector End View (Standard)
GCWD1006305Courtesy of CHRYSLER

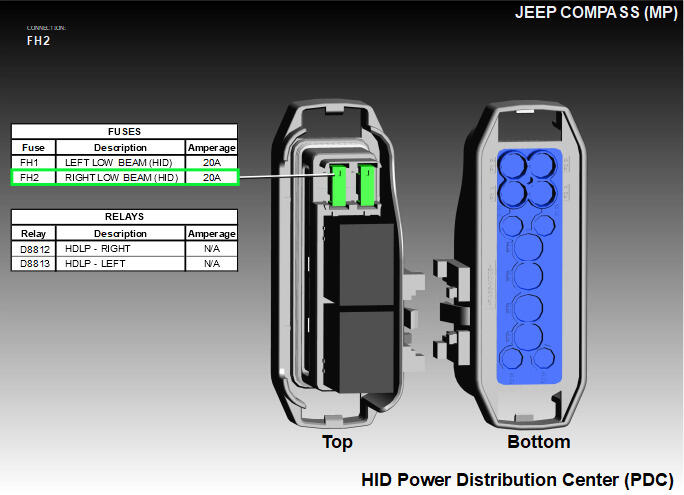

Fig 2: Fuse Fh2 20a Component Location View (Standard)
GCWD1323578Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A905 INTERNAL NA FUSED B(+) N/A
2 A998 INTERNAL NA FUSED B(+) N/A
