Camera-Rear Video (Standard) Connector End View (D6742A)

Harness-Family: Light_Bar

Color: NATURAL

Gender: FEMALE

Part Number: 7289-0064_7129-5503

Part Description: Not Available

Connector No: D6742A

Option: Standard

Repair Kit Part Number: TBD Grp38-18

Cavity Count: 6

Fig 1: Camera-Rear Video Connector End View (Standard)

Courtesy of CHRYSLER

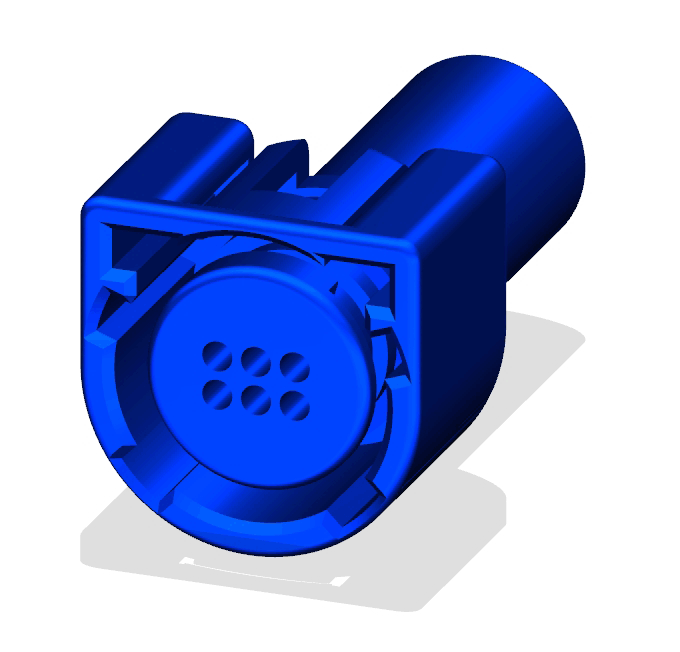

Fig 2: Camera-Rear Video Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Camera-Rear Video Wire Insertion View (Standard)

Courtesy of CHRYSLER

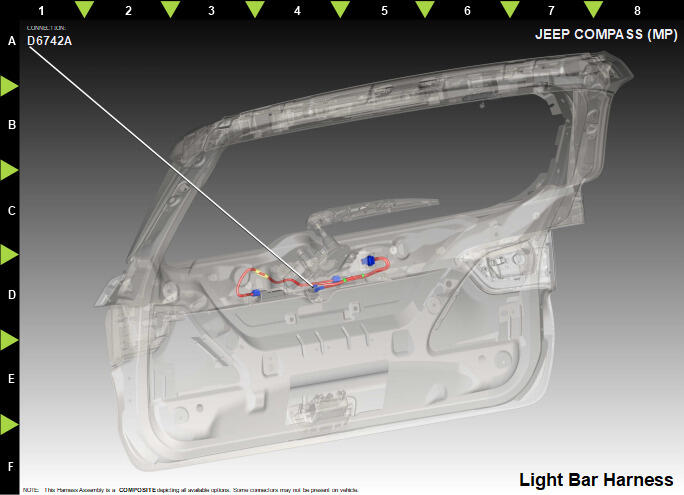

Fig 4: Camera-Rear Video Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z930	BK	0.35	GROUND	N/A
2	D402	OG/VT	0.35	LIN BUS CBC 2	N/A
3	F944	PK/GN	0.35	FUSED IGNITION	N/A
4	X972	NA	0.35	CAMERA SHIELD	N/A
5	X971	DG/OG	0.35	CAMERA RETURN	N/A
6	X970	DG/BN	0.35	CAMERA SIGNAL	N/A
