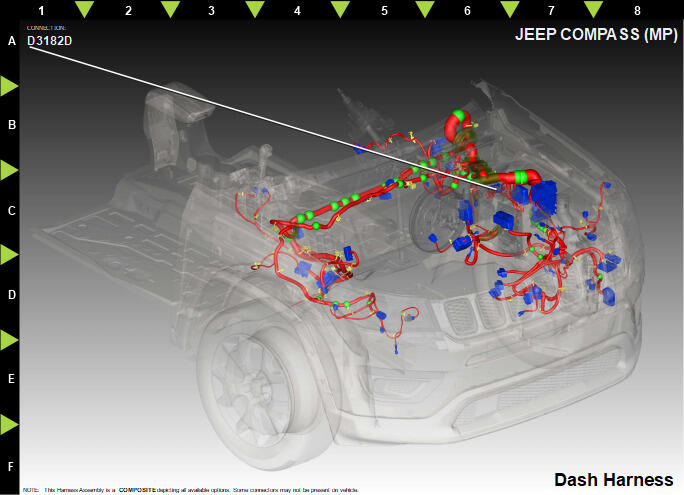

Battery Distribution Unit C4 (2.4L) Connector End View (D3182D)
Harness-Family: Dash
Color: NATURAL
Gender: FEMALE
Part Number: 5713
Part Description: Not Available
Connector No: D3182D
Option: 2.4L
Repair Kit Part Number: Not Available
Cavity Count: 1
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | A702 | RD | 2 | FUSED B(+) | N/A |
| 1 | A1 | RD | 2 | FUSED B(+) | SINGLE BATTERY |
