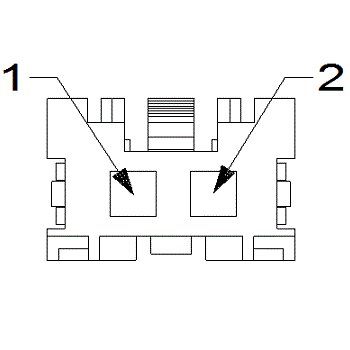

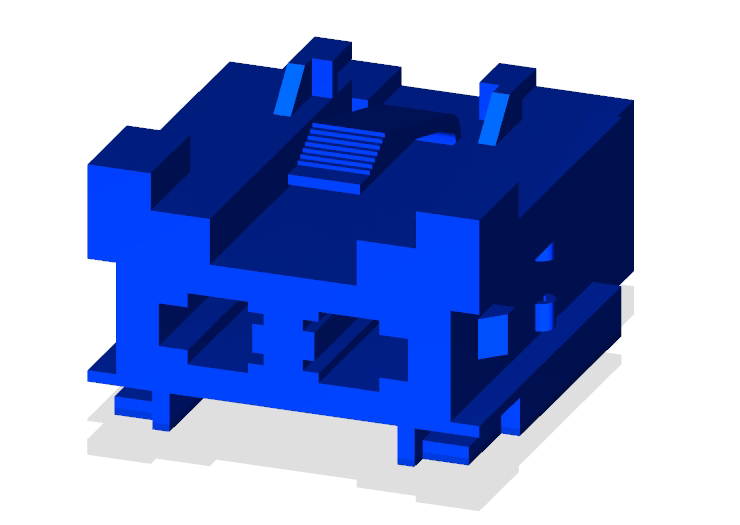

Assembly-Power Distribution Center-Rear C3 (Standard) Connector End View (D6631C)
Harness-Family: Body
Color: BLACK
Gender: FEMALE
Part Number: 0300400
Part Description: Not Available

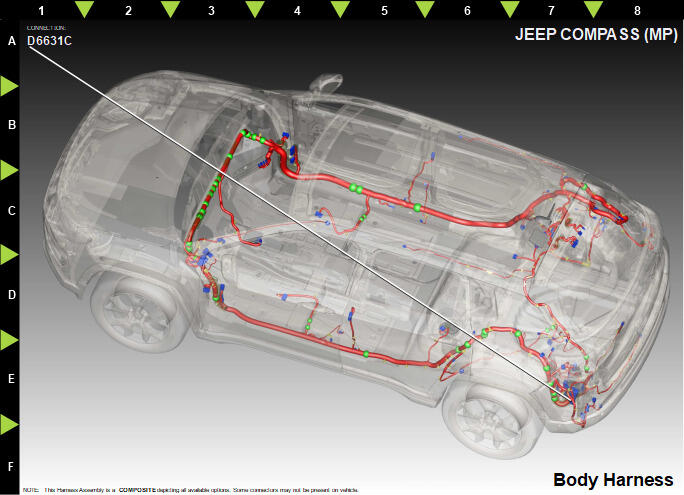

Connector No: D6631C
Option: Standard
Repair Kit Part Number: 68502138AA
Cavity Count: 2
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | A906 | RD/GY | 4.0 | FUSED B(+) | N/A |
| 2 | A931 | RD | 2.0 | FUSED B(+) | N/A |
