Unit-Power Transfer (Standard) Connector End View (D2798A)

Harness-Family: Jumper_PTU

Color: BLACK

Gender: FEMALE

Part Number: 10090636

Part Description: Not Available

Connector No: D2798A

Option: Standard

Repair Kit Part Number: 68475542AC

Cavity Count: 11

Fig 1: Unit-Power Transfer Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Unit-Power Transfer Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Unit-Power Transfer Wire Insertion View (Standard)

Courtesy of CHRYSLER

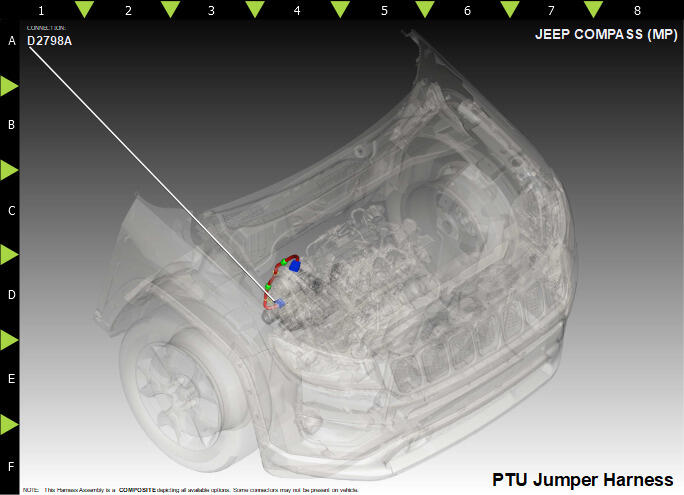

Fig 4: Unit-Power Transfer Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	T323	DG	2.5	PTU MOTOR (+)	N/A
3	T324	DG/GY	2.5	PTU MOTOR (-)	N/A
4	T303	YE/PK	0.50	PTU POSITION SENSOR SUPPLY	N/A
5	T320	YE/VT	0.50	PTU TEMP SENSOR RETURN	N/A
6	T322	DG/BK	0.50	PTU POSITION SENSOR 2 SIGNAL	N/A
7	S001	BK	0.50	SHIELD 1	N/A
8	T319	YE	0.50	PTU TEMP SENSOR SIGNAL	N/A
9	T304	YE/BK	0.50	PTU POSITION SENSOR RETURN	N/A
10	T321	DG/WH	0.50	PTU POSITION SENSOR 1 SIGNAL	N/A
11	S002	BK	0.50	SHIELD 2	N/A
