Switch-Seat-Driver (Except Memory) Connector End View (D2285A)

Harness-Family: Seat_Driver

Color: BLACK

Gender: FEMALE

Part Number: 1326359-1

Part Description: CONNECTOR PLUG HSG LIVING HINGE DESIGN

Connector No: D2285A

Option: EXCEPT MEMORY

Repair Kit Part Number: Not Available

Cavity Count: 11

Fig 1: Switch-Seat-Driver Connector End View (EXCEPT MEMORY)

Courtesy of CHRYSLER

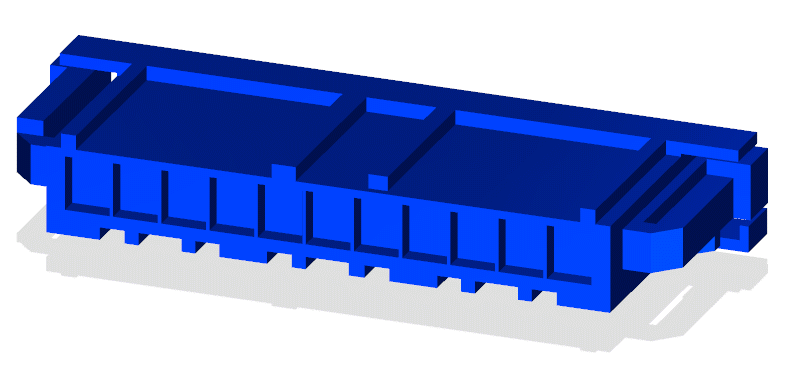

Fig 2: Switch-Seat-Driver Isometric View (EXCEPT MEMORY)

Courtesy of CHRYSLER

Fig 3: Switch-Seat-Driver Wire Insertion View (EXCEPT MEMORY)

Courtesy of CHRYSLER

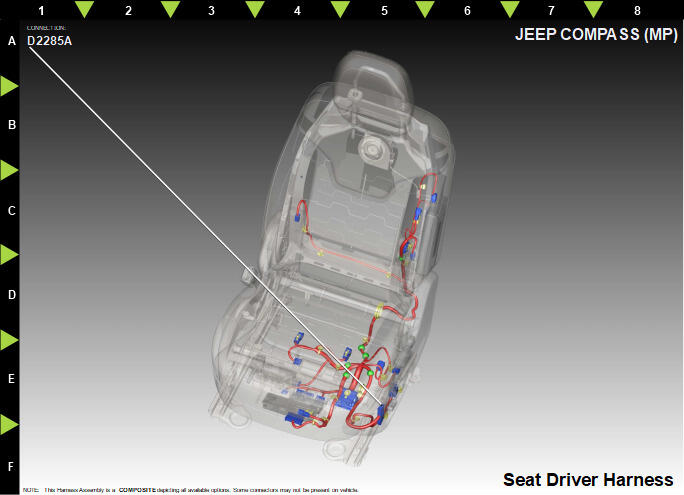

Fig 4: Switch-Seat-Driver Component Location View (EXCEPT MEMORY)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P41	GN/GY	2.0	DRIVER RECLINER DOWN SWITCH SENSE	N/A
2	N0	NA	0	NO CONNECT	N/A
3	P43	GN/VT	2.0	DRIVER SEAT RECLINER UP DRIVER	N/A
4	P17	GN/DG	2.0	DRIVER SEAT HORIZONTAL REARWARD DRIVER	N/A
5	P21	GN/BG	2.0	DRIVER SEAT FRONT DOWN DRIVER	N/A
6	P9	GN/OG	2.0	SEAT SWITCH B(+) SUPPLY	N/A
7	Z941	BK	2.0	GROUND	N/A
8	P15	GN/WH	2.0	DRIVER SEAT HORIZONTAL FORWARD DRIVER	N/A
9	P19	GN/BU	2.0	DRIVER SEAT FRONT UP DRIVER	N/A
10	P13	GN/OG	2.0	DRIVER SEAT REAR DOWN DRIVER	N/A
11	P11	GN/YE	2.0	DRIVER SEAT REAR RISER UP DRIVER	N/A
