Switch-Power Liftgate-Rear (Standard) Connector End View (D2365A)

Harness-Family: Body

Color: NATURAL

Gender: FEMALE

Part Number: AIT2PB-06-1FS

Part Description: Not Available

Connector No: D2365A

Option: Standard

Repair Kit Part Number: 68499646AA

Cavity Count: 6

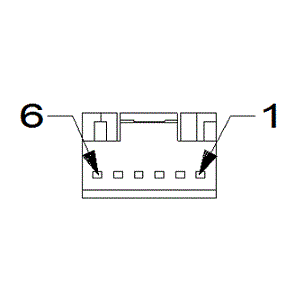

Fig 1: Switch-Power Liftgate-Rear Connector End View (Standard)

Courtesy of CHRYSLER

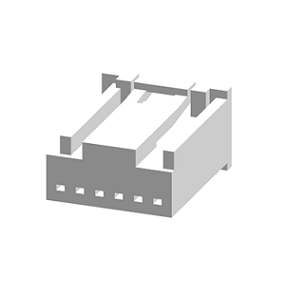

Fig 2: Switch-Power Liftgate-Rear Isometric View (Standard)

Courtesy of CHRYSLER

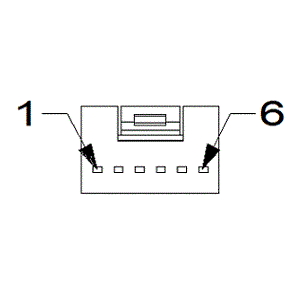

Fig 3: Switch-Power Liftgate-Rear Wire Insertion View (Standard)

Courtesy of CHRYSLER

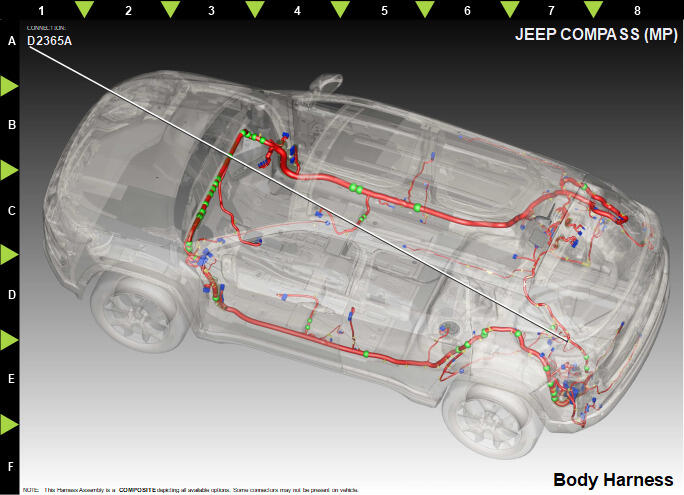

Fig 4: Switch-Power Liftgate-Rear Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G29	VT	0.35	LIFTGATE SWITCH SIGNAL	N/A
2	Q901	OG/VT	0.35	LOGIC GROUND	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
