Sensor-Park Assist 10 (Standard) Connector End View (D1596A)

Harness-Family: FASCIA_REAR

Color: BLACK

Gender: FEMALE

Part Number: 872-858-541

Part Description: Not Available

Connector No: D1596A

Option: Standard

Repair Kit Part Number: 68526402AA

Cavity Count: 3

Fig 1: Sensor-Park Assist 10 Connector End View (Standard)

Courtesy of CHRYSLER

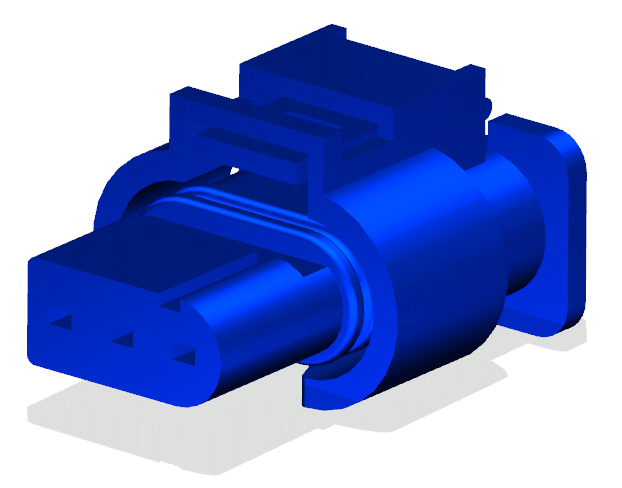

Fig 2: Sensor-Park Assist 10 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Park Assist 10 Wire Insertion View (Standard)

Courtesy of CHRYSLER

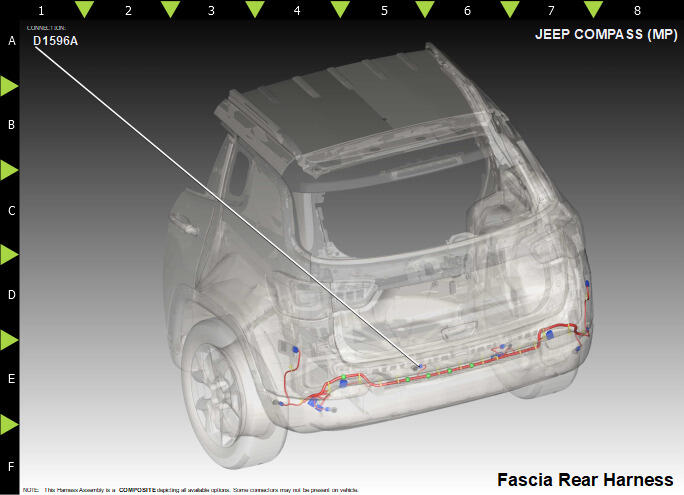

Fig 4: Sensor-Park Assist 10 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X700	GY/OG	0.35	REAR PARK ASSIST SENSOR SUPPLY	N/A
2	D704	WH/DG	0.35	PARK ASSIST SIGNAL 10	N/A
3	X750	GY/BU	0.35	REAR PARK ASSIST SENSOR GROUND	N/A
