I480A (Standard) Connector End View (I480A)

Harness-Family: Body

Color: GRAY

Gender: FEMALE

Part Number: 7283-8397-40

Part Description: YESC SUB ASSEMBLY (10P 0.64 + 4P 2.8)

Connector No: I480A

Option: Standard

Repair Kit Part Number: 68498872AA

Cavity Count: 14

Fig 1: I480a Connector End View (Standard)

Courtesy of CHRYSLER

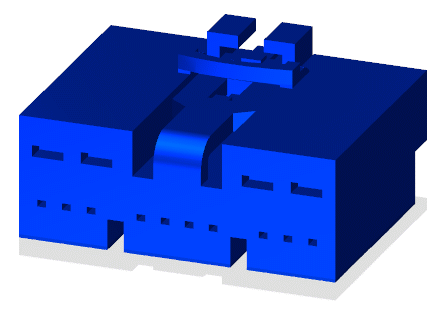

Fig 2: I480a Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: I480a Wire Insertion View (Standard)

Courtesy of CHRYSLER

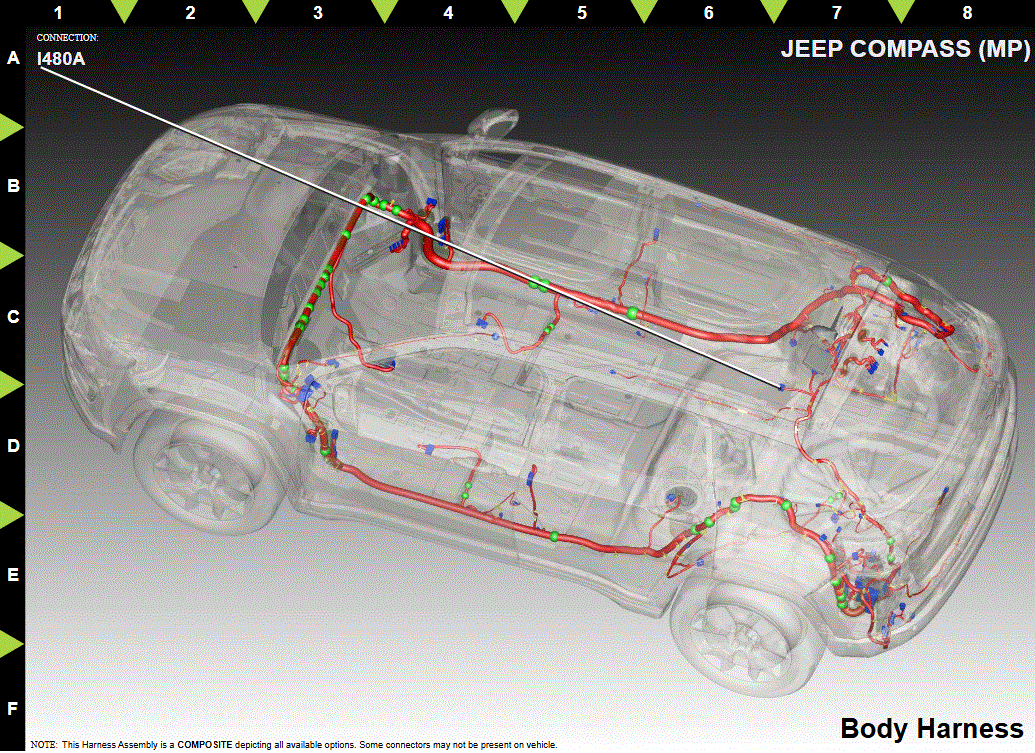

Fig 4: I480a Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A130	VT/RD	4.0	FUSED B(+)	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	Z941	BK/VT	3.0	GROUND	N/A
5	Q3	OG/BG	0.35	SUNROOF OPEN SWITCH SENSE	N/A
6	Q5	OG/BU	0.35	SUNROOF CLOSE SWITCH SENSE	N/A
7	Q4	OG/YE	0.35	SUNROOF VENT SWITCH SENSE	N/A
8	Q556	OG/GY	0.35	SUNROOF SHADE PWR OPEN (+)	N/A
9	Q56	OG/VT	0.35	SUNROOF SHADE PWR CLOSE (+)	N/A
10	N0	NA	0	NO CONNECT	N/A
11	B222	DG/WH	0.35	VEHICLE SPEED SIGNAL 2	N/A
12	Q6	OG/GN	0.35	SUNROOF SWITCH RETURN	N/A
13	N0	NA	0	NO CONNECT	N/A
14	Q552	OG/DB	0.50	SUNROOF ENABLE/DISABLE	N/A
