Sensor-Intake Air Temperature (Standard) Connector End View (D1503A)

Harness-Family: Engine

Color: GRAY

Gender: FEMALE

Part Number: 184002-1

Part Description: INS 2/W AMP SENSOR TYPE B

Connector No: D1503A

Option: Standard

Repair Kit Part Number: 05014003AA

Cavity Count: 2

Fig 1: Sensor-Intake Air Temperature Connector End View (Standard)

Courtesy of CHRYSLER

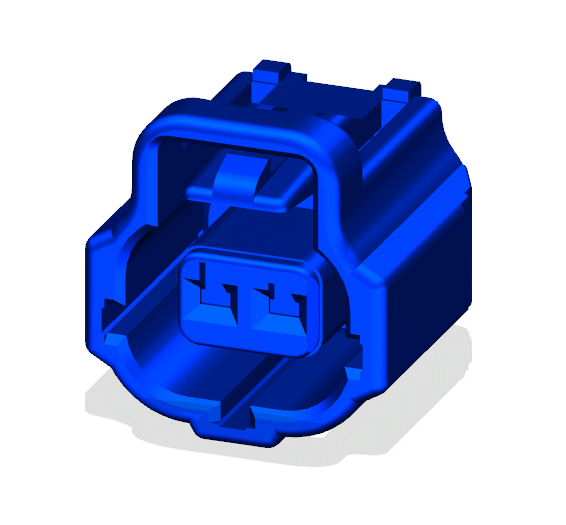

Fig 2: Sensor-Intake Air Temperature Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Intake Air Temperature Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Sensor-Intake Air Temperature Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K21	DB/GN	0.75	IAT SIGNAL	N/A
2	K915	BN/WH	0.75	SENSOR GROUND	N/A
