S02A (Standard) Connector End View (S02A)

Harness-Family: HVAC_Jumper

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S02A

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S02a Connector End View (Standard)

Courtesy of CHRYSLER

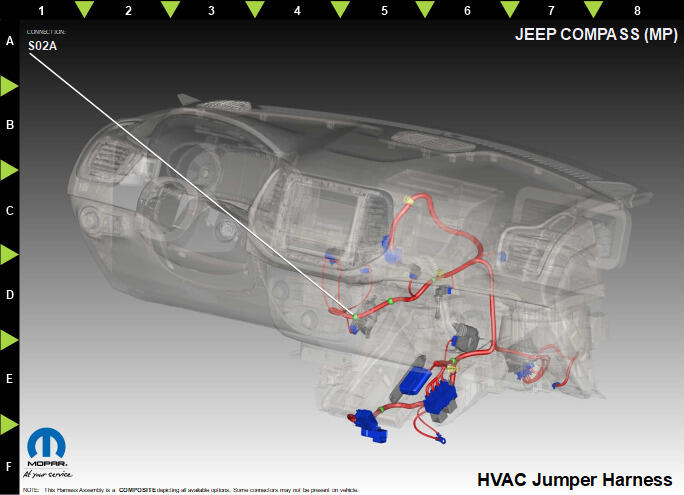

Fig 2: S02a Component Location View (Standard)

Courtesy of CHRYSLER
