Grid-Heated Windshield (Standard) Connector End View (D7418A)

Harness-Family: Dash

Color: GRAY

Gender: FEMALE

Part Number: 7287-3577-10

Part Description: Not Available

Connector No: D7418A

Option: Standard

Repair Kit Part Number: 68517000AA

Cavity Count: 2

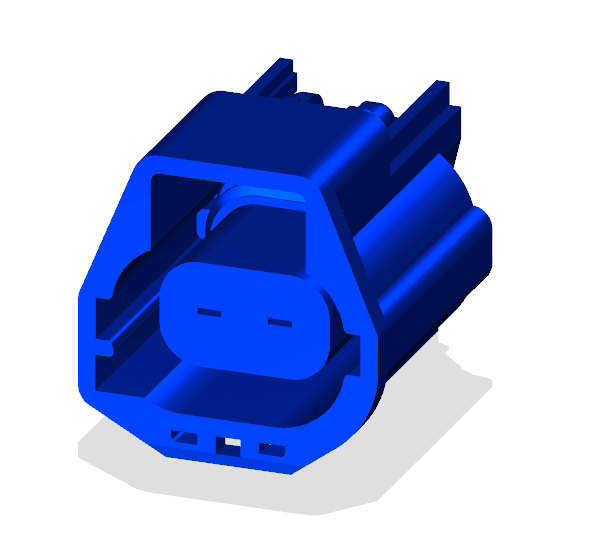

Fig 1: Grid-Heated Windshield Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Grid-Heated Windshield Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Grid-Heated Windshield Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Grid-Heated Windshield Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	C900	BU/VT	2.5	FRONT WINDSHIELD DEFROST (SUPPLY)	N/A
2	Z910	BK	2.0	GROUND	N/A
