Pump, Engine Oil: Description
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

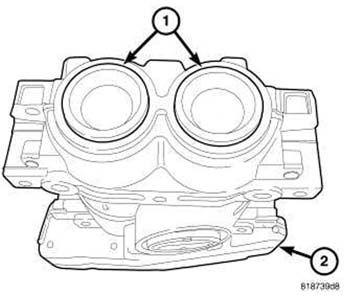

- The oil pump is integral to the Balance Shaft Module (BSM) (2).
- The oil pump cannot be disassembled for inspection.
- The pressure relief valve is serviceable and can be removed and inspected.
- The BSM can be identified by the plastic end caps (1).
