Insulator, Engine Mount, Rear: Installation
WARNING: This page is about a different variant/trim than selected.
- If removed, install the front crossmember isolator. Refer to ISOLATOR, FRONT CROSSMEMBER, TORSION, INSTALLATION
.

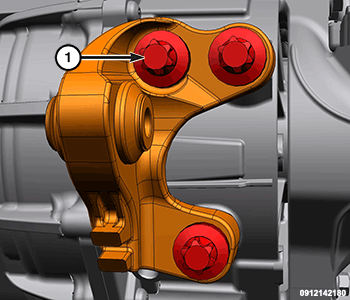

- If removed, install the transmission pivot bracket to the transmission. Tighten the bolts (1) to the proper torque specification. Refer to
TORQUE SPECIFICATIONS .
- Position the rear insulator between the engine mount bracket and the cradle.
- Install the rear insulator to engine mount bracket through bolt and nut (1) but do not tighten at this time.

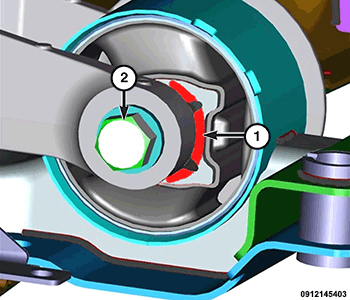

- Install the rear insulator to cradle through bolt (2), align the rear isolator with the mark (1) made during removal and tighten the through bolt (2) to the proper torque specification. Refer to
TORQUE SPECIFICATIONS .
- Verify that the distance from the powertrain to the engine cradle is within 3 mm of the reference measurement taken during removal and tighten the previously installed insulator to bracket bolt and nut (1) to the proper torque specification. Refer to
TORQUE SPECIFICATIONS .
- Place the ground cable (2) in position on the transmission (3), install the ground cable bolt (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the left front wheelhouse splash shield. Refer to INSTALLATION .
- If equipped, install the skid plate. Refer to PLATE, SKID, SIDE, INSTALLATION .
- Remove the support and lower the vehicle.
