Air Cleaner: Installation

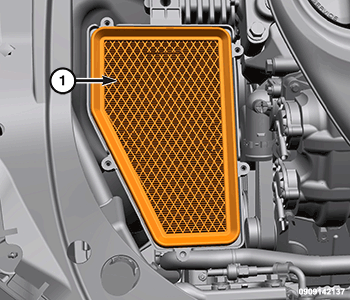

GC0186723Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner element (1) into the air cleaner housing.

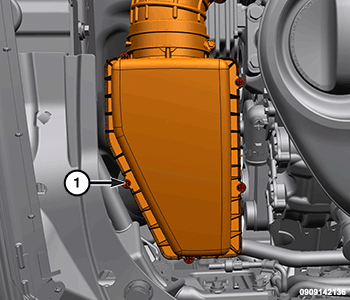

    GC0186604Courtesy of CHRYSLER GROUP, LLC
  2. Seat the cover onto the housing and securely tighten the fasteners (1).
