Switch, Terrain Select: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Position the terrain select switch to the console bezel and connect the wire harness connector.

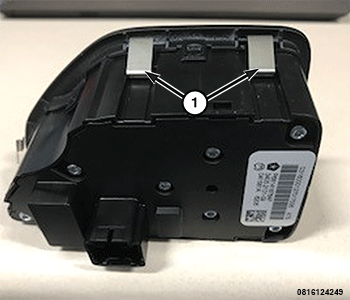

2. Install the terrain select switch into the console bezel and fully seat ensuring the clip fasteners (1) are engaged.
3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
