Sensor, Intelligent Battery (IBS): Installation
NOTE:
Connecting the negative battery cable to the Intelligent Battery Sensor (IBS) must be done before installing on the battery post.
NOTE:
DO NOT use a hammer to tap down the sensor. Use a post spreader to open the post if reusing the existing sensor.
NOTE:
Avoid IBS rotation during tightening of M8 nut as to avoid contact of 2 way connector breakage when rotating in to the battery.
- Connect the negative battery cable to the IBS sensor while holding the sensor in your hand and hand tighten the M8 nut.
- Install the IBS sensor onto the negative battery post.

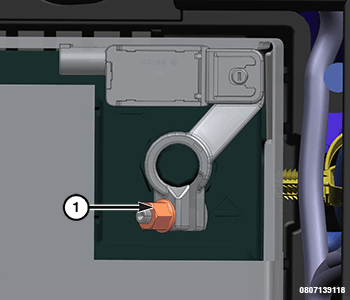

- Hand support the IBS sensor to avoid rotation or damage and tighten the M8 nut (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS
.NOTE:
M8 has much higher torque than the M6 clamp and can break IBS free if the M6 is tightened prior.

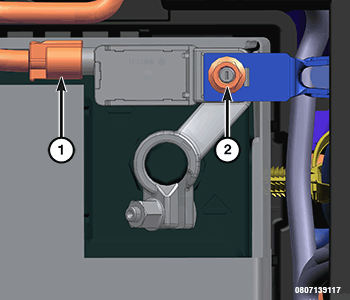

- Tighten the M6 terminal clamp nut (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Install the two-pin wire harness connector (1) to the IBS.
