Positive - 3.2L

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

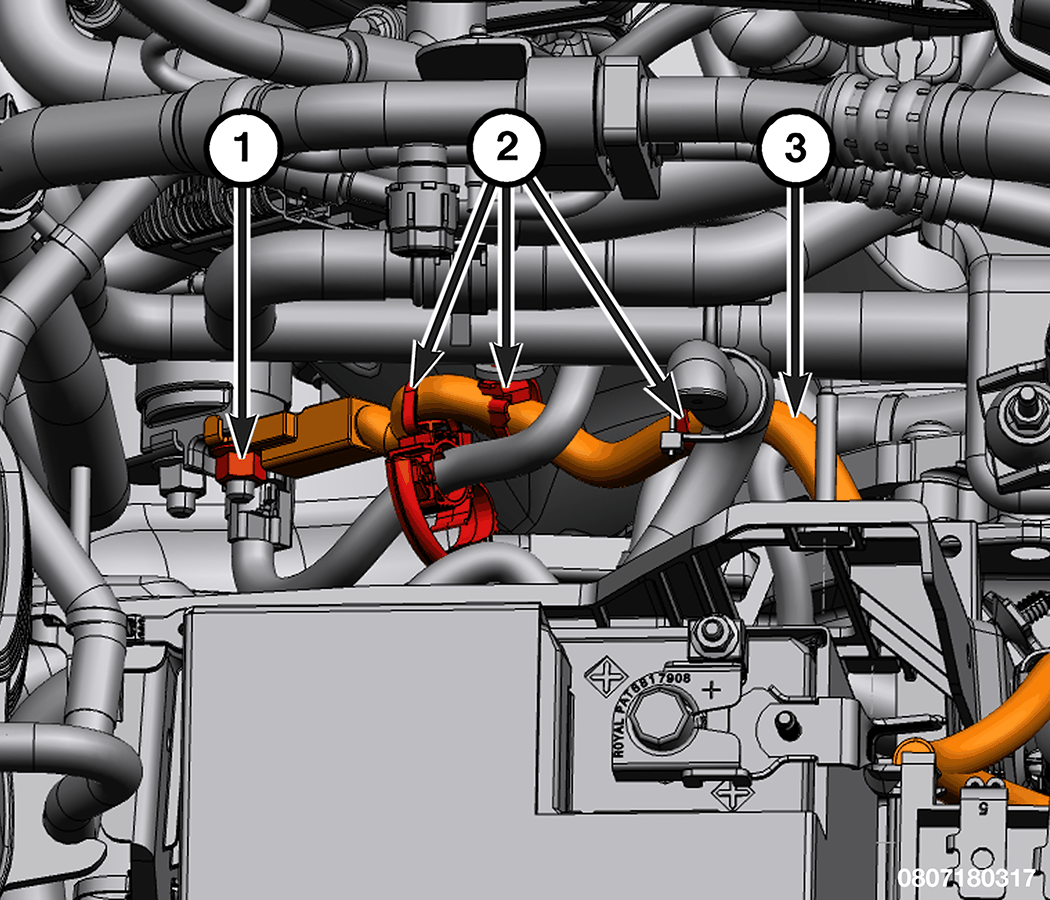

1. Position the B+ cable(3) in the vehicle and secure the retaining clips (2).
2. Install the fastener (1) and tighten it to the proper specifications. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

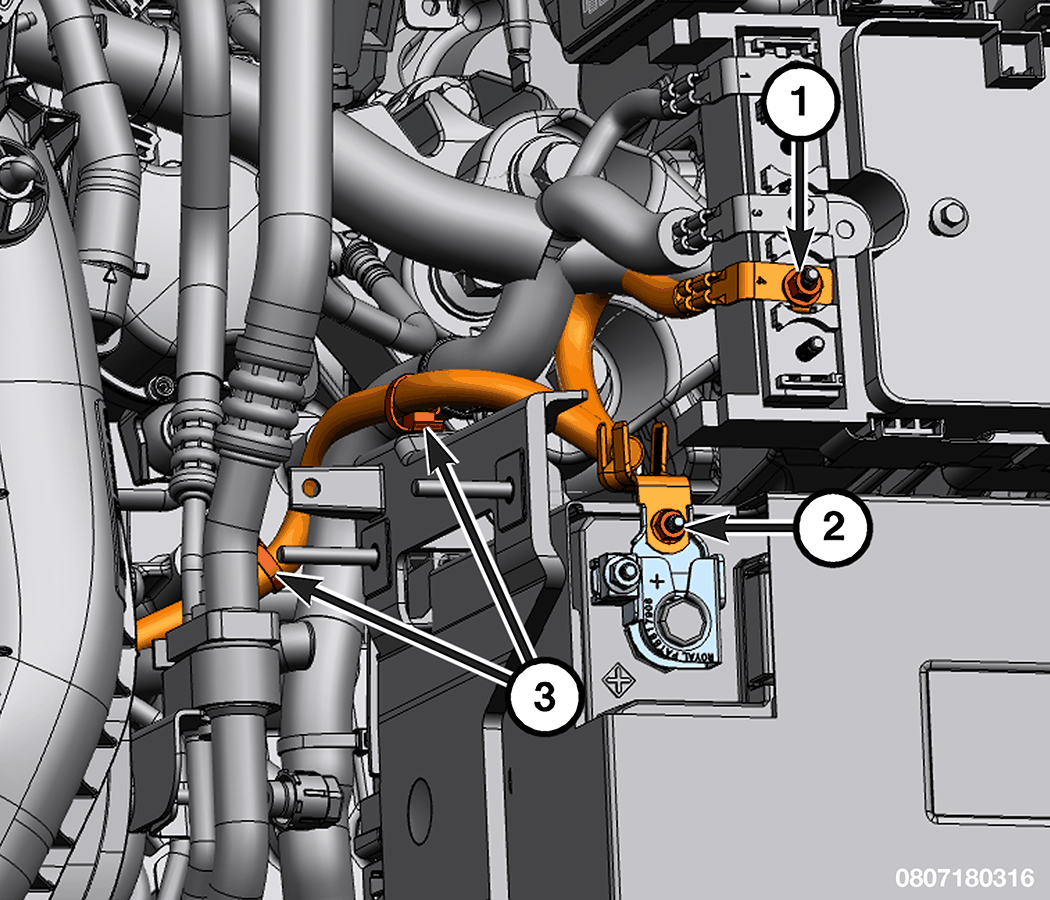

3. Install the remaining clips (3) securing the B+ cable, connect the B+ to the PDC and positive battery clamp.
4. Tighten the fasteners (1, 2) to the proper specifications. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

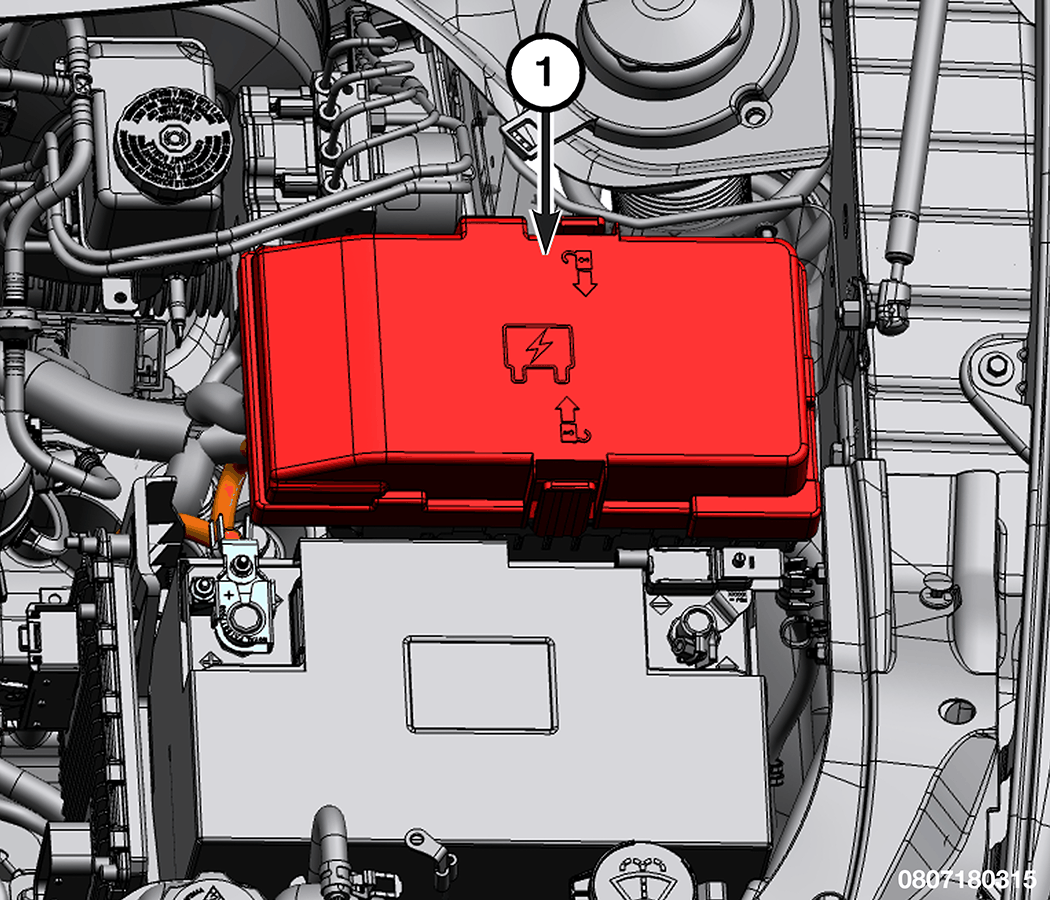

5. Install the cover (1) onto the PDC.
6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
