Removal - PDC Assembly

Courtesy of CHRYSLER GROUP, LLC

For complete circuit diagrams, refer to the appropriate wiring information. The wiring information includes SYSTEM WIRING DIAGRAMS, proper wire and connector repair procedures, further details on wire harness routing and retention, as well as pin-out and location views for the various wire harness connectors, splices and grounds.

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the PDC cover.
3. Remove the positive (B+) Power from the battery before touching the metal fasteners on the Z case fuses.

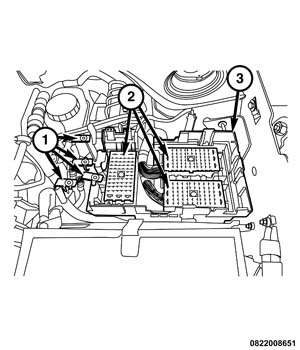

4. Disconnect the power feed connections from the PDC (3).

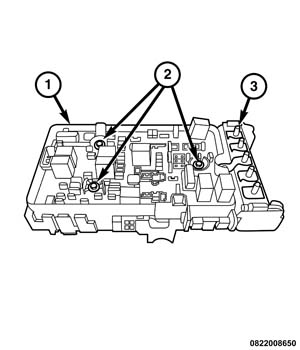

5. Loosen the fasteners (2) that secure upper tray of the PDC. These fasteners are captured and cannot be completely removed.

   Courtesy of CHRYSLER GROUP, LLC

6. Release the plastic clips that secure the PDC to the tray.
7. The PDC upper tray will now lift upward. Carefully lift tray and disconnect the three bulkhead connectors (2) from the bottom.
8. Remove the PDC tray from the vehicle.
