Switch, Brake Fluid Level: Installation

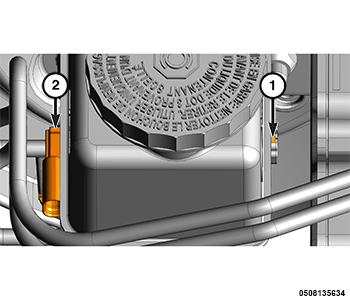

GC0186731Courtesy of CHRYSLER GROUP, LLC
  1. Align the brake fluid level switch (2) with the mounting hole on the master cylinder brake fluid reservoir.
  2. Push the switch (2) into the fluid reservoir until both switch retaining tabs (1) engage securely.

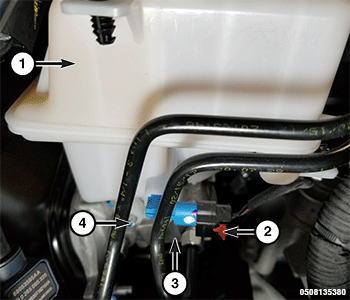

    GC0186937Courtesy of CHRYSLER GROUP, LLC
  3. Connect the brake fluid level switch electrical connector (2).
