Switch, Lumbar Control: Installation

Courtesy of CHRYSLER GROUP, LLC

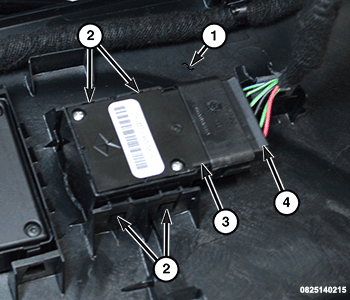

1. Install the lumbar switch (3) to the side shield (1) by engaging it to the switch retainers (2).
2. Connect the wire harness connector (4).
3. Install the side shield. Refer to SIDE SHIELDS, SEAT, POWER, INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
