Switch, Liftgate Release: Description

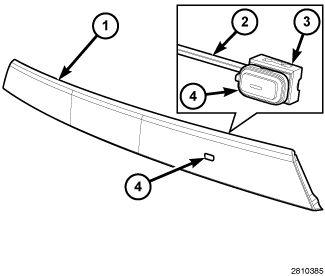

Vehicles equipped with the optional Passive Entry (PE) system have a unique liftgate handle and light bar unit (1) that incorporates a PE liftgate lock and unlock switch (3) and push button (4). This tactile switch is secured to the back of the right side of the handle and light bar unit by three latch features integral to the back of the handle housing. The switch button extends through a clearance hole in the handle housing so that it can be accessed on the outer surface of the handle to the right side of center.
The switch is soldered to the handle and light bar unit wire harness secured to the back of the handle housing that connects the switch along with the liftgate flip-up glass latch release switch, the two license plate lamps and, if the vehicle is so equipped, the rear view camera to the vehicle electrical system through a dedicated take out and connector of the liftgate wire harness.
The PE liftgate lock and unlock switch cannot be adjusted or repaired. If the switch is damaged or ineffective, the entire liftgate handle and light bar unit wire harness must be replaced.
