Latch, Liftgate: Description

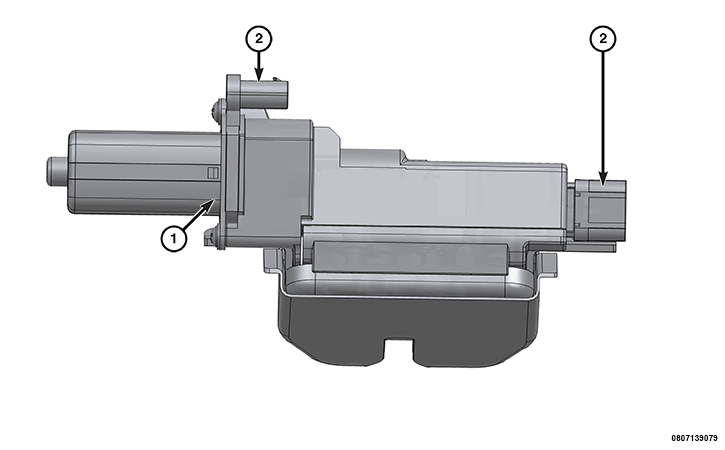

Vehicles equipped with an optional power liftgate are equipped with a unique latch assembly (1) that performs the same function as a manual liftgate latch, but includes a Direct Current (DC) electric cinch and release actuator motor. This latch also includes three integral switches: a sector switch, a secondary ratchet switch and a primary ratchet switch. The primary ratchet switch also provides the liftgate ajar signal from the power liftgate latch.
On the latch housing are two connector receptacles (2) for the motor and the pinch sensor.
The power liftgate latch cannot be repaired. If the latch is damaged or ineffective, the entire latch unit must be replaced.
