Audio/Video/Entertainment/Connectivity (Service Information): Speaker: Installation: Subwoofer

Courtesy of CHRYSLER GROUP, LLC

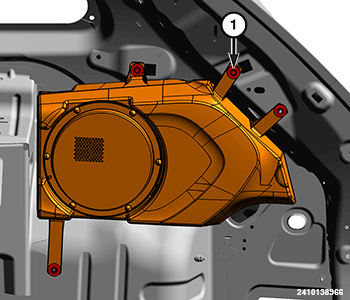

1. Position the subwoofer.
2. Install the subwoofer fasteners (1) and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

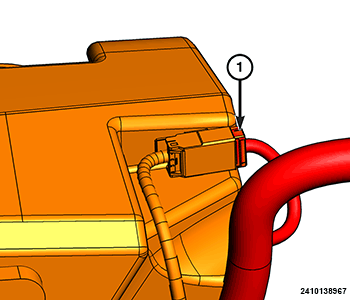

3. Connect the subwoofer wire harness connector (1).
4. Install the passenger side quarter trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
