Electronic Control Modules (Service Information): Radio: Description
There are three radio screen sizes and four Uconnect® packages available in this vehicle, Uconnect® 3 with 5 inch touchscreen display, Uconnect® 4 with 7 or 8.4 inch touchscreen display and Uconnect® 4 NAV or Uconnect® 4C NAV with 8.4 inch touchscreen display. Each radio has a distinct chassis design and is identified by a sales code.
Compass data for all models is generated by the radio.

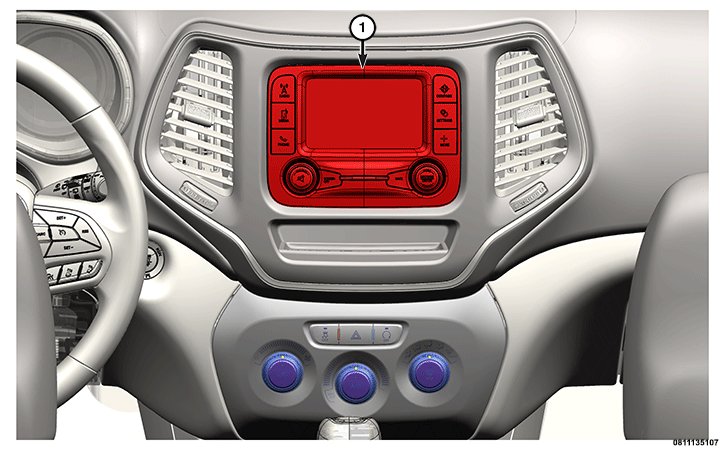

The Uconnect® 3 radio (1) includes the following features:
- AM/FM frequency reception
- 12.7 centimeter (5 inch) full color touchscreen display
- six speakers
- Auxiliary/Universal Serial Bus (USB) Media Hub
- USB port in the center console
- hands free phone
- Voice Recognition (VR) commands
- vehicle personalization/settings
- speed adjusted volume

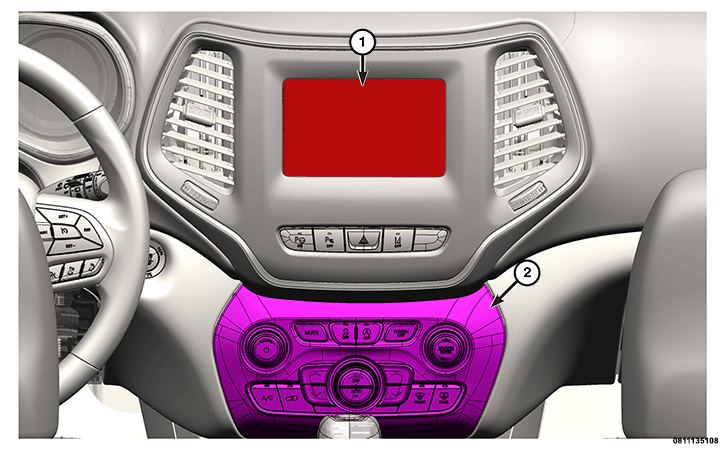

The Uconnect® 4 radio (1) includes the following features:
- AM/FM frequency reception
- 17.8 centimeter (7 inch) or 21.3 centimeter (8.4 inch) full color touchscreen display
- Google Android Auto
- Apple CarPlay
- Auxiliary/USB Media Hub
- USB port in the center console
- vehicle personalization/settings
- speed adjusted volume
- integrated steering wheel controls
- Radio Broadcast Data System (RBDS)
- Bluetooth® connectivity
- Bluetooth® streaming audio
- hands free phone
- Voice Recognition (VR) commands
- text message reader
- six speakers
- ParkView® integrated rear view camera
The external radio controls are located in the Integrated Center Stack (ICS) Module (2).

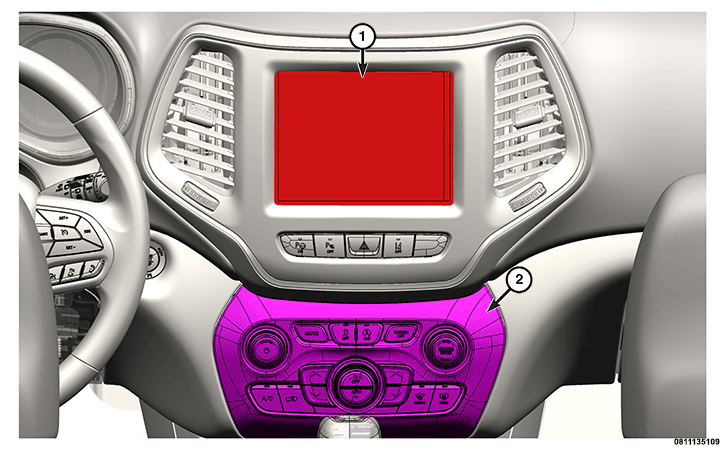

The Uconnect® 4 NAV and Uconnect® 4C NAV radios (1) includes the following features:
- AM/FM frequency reception
- 21.3 centimeter (8.4 inch) full color touchscreen display
- HD Radio
- Google Android Auto
- Apple CarPlay
- Auxiliary/USB Media Hub
- USB port in the center console
- vehicle personalization/settings
- USB and USB-C ports in the rear of the center console
- speed adjusted volume
- integrated steering wheel controls
- Radio Broadcast Data System (RBDS)
- Bluetooth® connectivity
- Bluetooth® streaming audio
- hands free phone
- Voice Recognition (VR) commands
- text message reader
- nine speakers and a subwoofer (optional)
- Premium integrated 3D Global Positioning System (GPS) navigation
- ParkView® integrated rear view camera
- SiriusXM® Guardian™ (1-year subscription)
The external radio controls are located in the ICS module (2).
Uconnect® 4 naming convention is as follows:
| 4 | 4th Generation | Capable of Apple CarPlay and Google Android Auto |
| C | Connected | Built-in connected devices (embedded modem) |
| NAV | Navigation | Built-in Uconnect® Navigation (not mirrored from a smartphone) |
Hardwired circuitry connects the radio to the electrical system of the vehicle. These hardwired circuits are integral to several wire harnesses, which route throughout the vehicle and are retained by many different methods. These circuits may be connected to each other and to the vehicle electrical system through the use of a combination of soldered splices, splice block connectors, and many different types of wire harness terminal connectors and insulators. Refer to the appropriate wiring information. The wiring information includes wiring diagrams, details of wire harness routing and retention, connector pin-out information and location views for the various wire harness connectors, splices and grounds. For proper wire repair, and connector repair procedures. Refer to STANDARD PROCEDURE , refer to REMOVAL and Refer to INSTALLATION .
The radio cannot be adjusted or repaired. If the radio is damaged or ineffective, it must be replaced.
