Module-Trailer Tow (Standard) Connector End View (D2399A)

Harness-Family: Body

Color: LIGHT GRAY

Gender: MALE

Part Number: 7282-6569-40

Part Description: KAIZEN YESC SUB-ASSEMBLY 11X2.8 + 2X6.3

Connector No: D2399A

Option: Standard

Repair Kit Part Number: 68137872AA

Cavity Count: 13

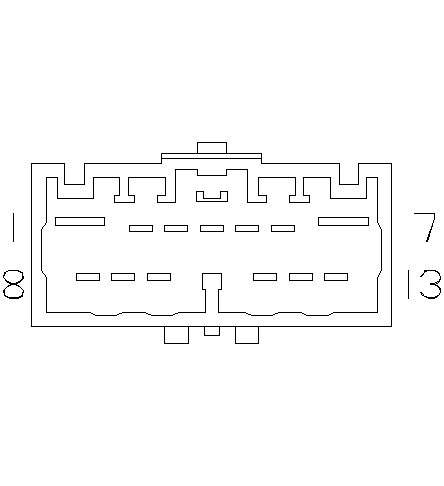

Fig 1: Module-Trailer Tow Connector End View (Standard)

Courtesy of CHRYSLER

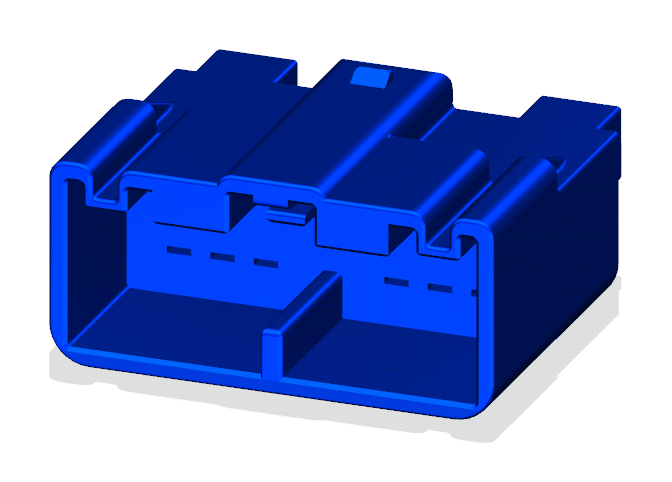

Fig 2: Module-Trailer Tow Isometric View (Standard)

Courtesy of CHRYSLER

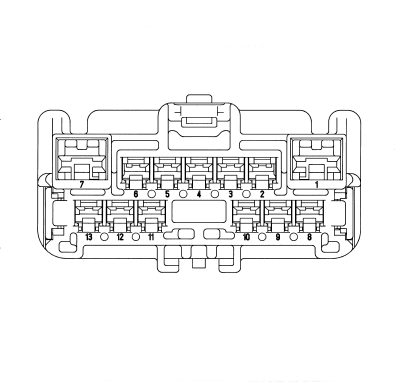

Fig 3: Module-Trailer Tow Wire Insertion View (Standard)

Courtesy of CHRYSLER

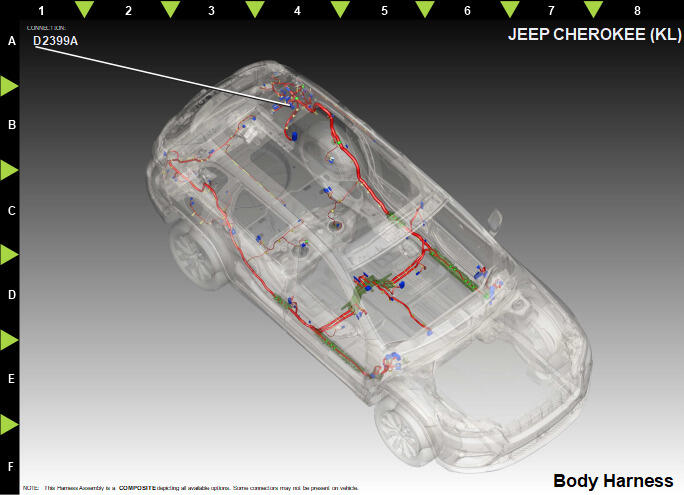

Fig 4: Module-Trailer Tow Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A100	RD/VT	2.0	FUSED B(+)	N/A
2	L658	WH/BN	0.35	TRAILER TOW BACKUP LAMP RELAY CONTROL	N/A
3	L657	WH/GN	0.35	TRAILER TOW TAIL LAMP RELAY CTRL	N/A
4	N0	NA	0	NO CONNECT	N/A
5	B122	DG/GN	0.50	BRAKE LAMP ACTIVATION RELAY CONTROL	N/A
6	L656	WH/DG	0.35	RIGHT REAR TURN SIGNAL CONTROL	N/A
7	Z923	BK	2.0	GROUND	N/A
8	L655	WH/OG	0.35	LEFT REAR TURN SIGNAL CONTROL	N/A
9	N0	NA	0	NO CONNECT	N/A
10	G78	VT/OG	0.35	DECKLID/LIFTGATE AJAR SWITCH SENSE	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	F944	PK/GN	0.35	RUN/START RELAY OUTPUT	N/A
