Module-Door-Driver C1 (Standard) Connector End View (D3818A)

Harness-Family: Mirror_Driver

Color: NATURAL

Gender: FEMALE

Part Number: 2-2177198-1_1-968562-2

Part Description: Not Available

Connector No: D3818A

Option: Standard

Repair Kit Part Number: 68156140AA

Cavity Count: 10

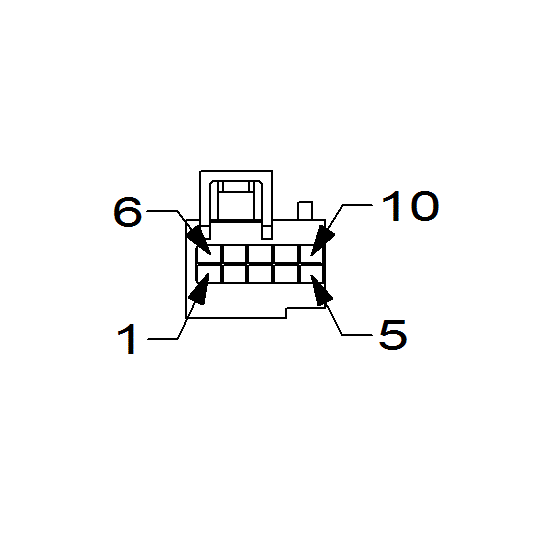

Fig 1: Module-Door-Driver C1 Connector End View (Standard)

Courtesy of CHRYSLER

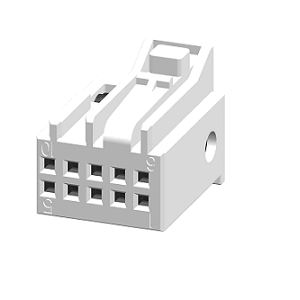

Fig 2: Module-Door-Driver C1 Isometric View (Standard)

Courtesy of CHRYSLER

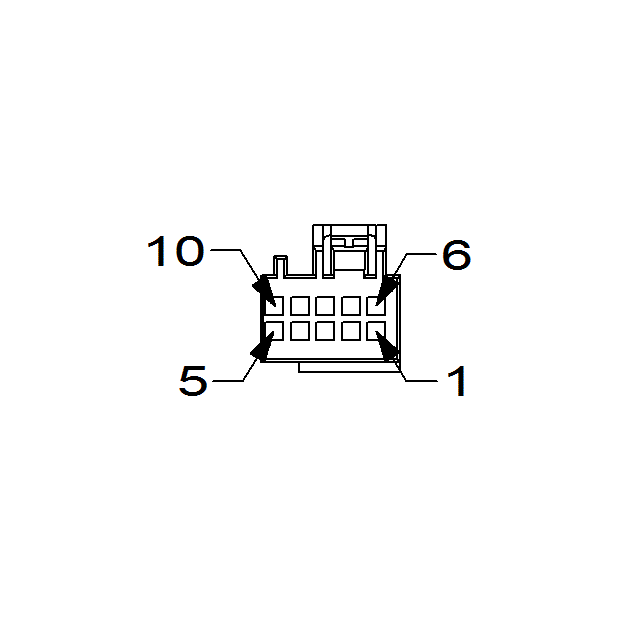

Fig 3: Module-Door-Driver C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

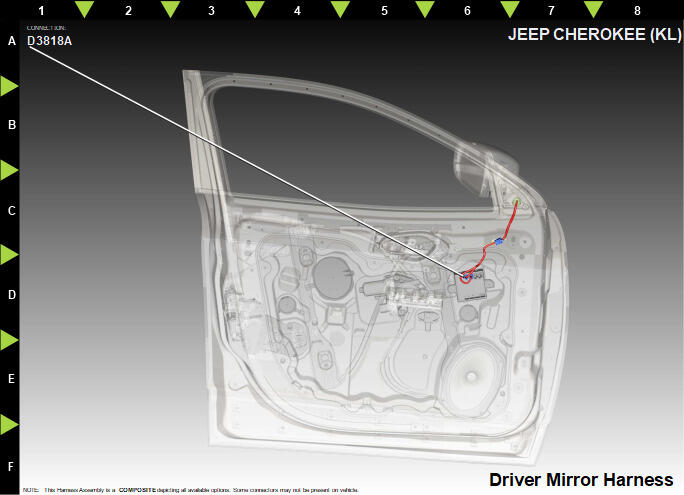

Fig 4: Module-Door-Driver C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P551	BK/GN	22	DRIVER MIRROR APPROACH LIGHT DRIVER	N/A
2	P552	BK/BN	22	DRIVER MIRROR APPROACH/BLINDSPOT LAMP RETURN	N/A
3	P711	VT/DG	22	DRIVER BLIND SPOT INDICATOR DRIVER	N/A
7	P67	GY	22	DRIVER MIRROR VERTICAL POSITION SIGNAL	N/A
8	P69	DG/WH	22	DRIVER MIRROR SENSOR GROUND	N/A
9	P65	DB/WH	22	DRIVER MIRROR HORIZONTAL POSITION SIGNAL	N/A
10	A856	RD/WH	22	FUSED B(+)	N/A
