Module-Body Control C7 (Standard) Connector End View (D2762G)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 15471055_15471039

Part Description: Not Available

Connector No: D2762G

Option: Standard

Repair Kit Part Number: 68335234AA

Cavity Count: 20

Fig 1: Module-Body Control C7 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Body Control C7 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Body Control C7 Wire Insertion View (Standard)

Courtesy of CHRYSLER

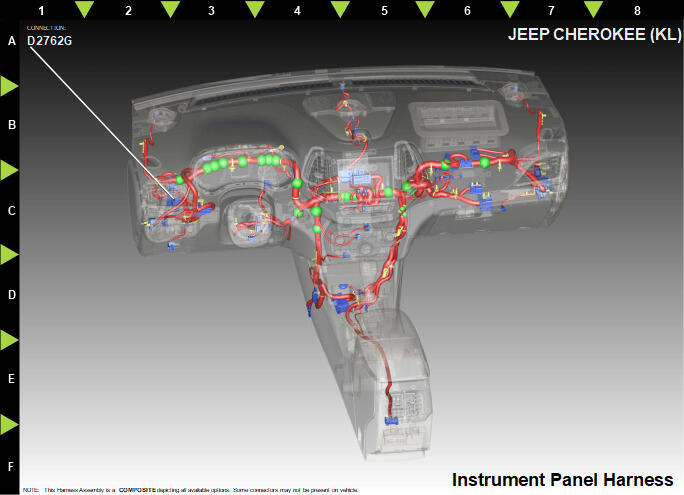

Fig 4: Module-Body Control C7 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	AC NON-ICS
3	A930	RD	0.50	FUSED B(+)	AC WITH ICS
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	M59	YE/GN	0.35	COURTESY LAMP FEED	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	Z914	BK	1.5	GROUND	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
17	A936	RD	0.50	FUSED B(+)	N/A
18	N0	NA	0	NO CONNECT	N/A
19	N0	NA	0	NO CONNECT	N/A
20	N0	NA	0	NO CONNECT	N/A
