Module-Emergency Assistance C3 (Standard) Connector End View (D3115C)

Harness-Family: Antenna_Jumper_TBM

Color: VIOLET

Gender: FEMALE

Part Number: 1438920-4

Part Description: Not Available

Connector No: D3115C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Module-Emergency Assistance C3 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Emergency Assistance C3 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Emergency Assistance C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

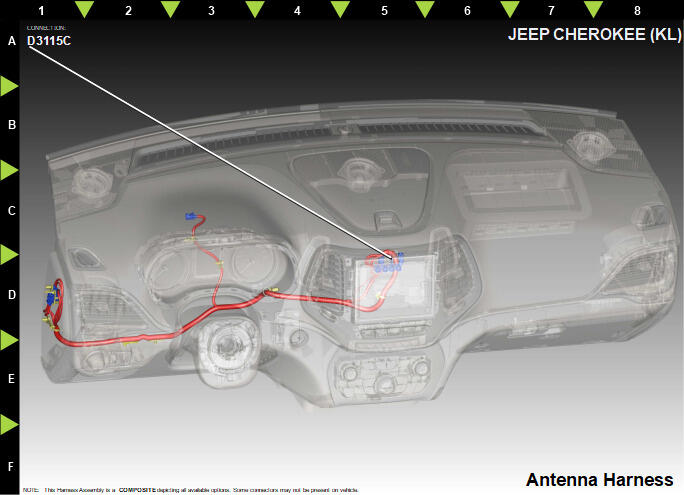

Fig 4: Module-Emergency Assistance C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D7	BK	0.70	CELLULAR ANTENNA SIGNAL	N/A
