Module-Door-Driver C4 (Standard) Connector End View (D3818D)

Harness-Family: Door_Front_Driver

Color: BLACK

Gender: FEMALE

Part Number: 4-2177196-1_2177231-1

Part Description: INNER HOUSING BLACK

Connector No: D3818D

Option: Standard

Repair Kit Part Number: 68156142AA

Cavity Count: 5

Fig 1: Module-Door-Driver C4 Connector End View (Standard)
GCWD1000887Courtesy of CHRYSLER

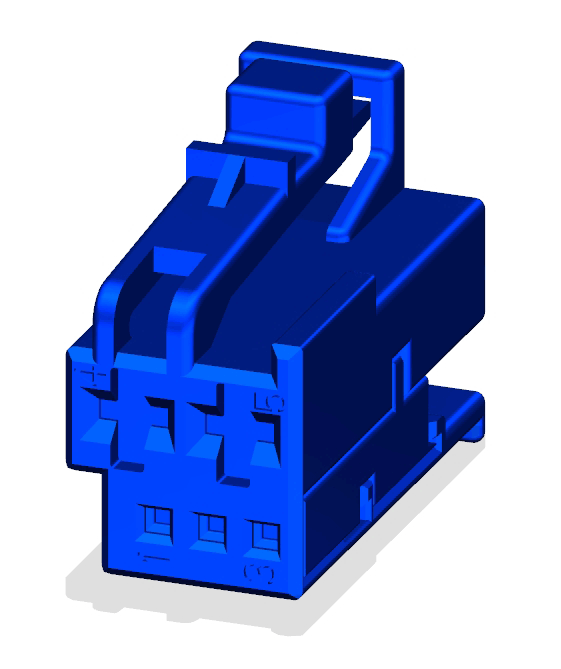

Fig 2: Module-Door-Driver C4 Isometric View (Standard)
GCWD1000185Courtesy of CHRYSLER
Fig 3: Module-Door-Driver C4 Wire Insertion View (Standard)
GCWD1010023Courtesy of CHRYSLER

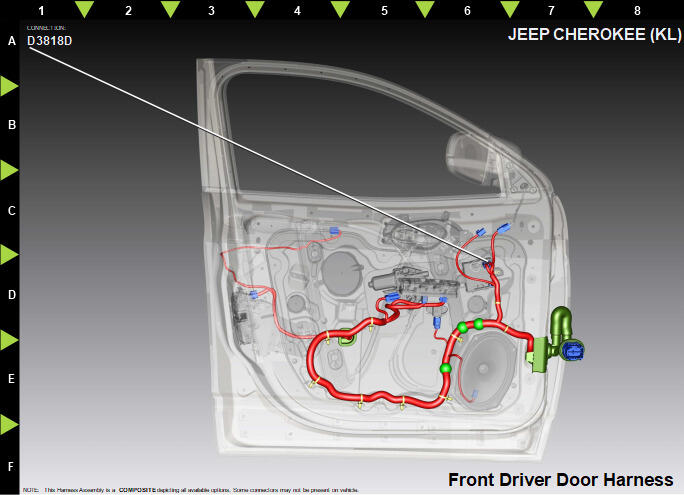

Fig 4: Module-Door-Driver C4 Component Location View (Standard)
GCWD1321863Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Q301 OG/WH 0.75 DRIVER WINDOW HALL SENSOR A SIGNAL N/A
2 Q305 OG 0.75 DRIVER WINDOW HALL SENSOR SUPPLY N/A
3 Q991 BK/OG 0.75 DRIVER WINDOW HALL SENSOR RETURN N/A
4 Q11 OG/GN 2.0 DRIVER WINDOW DRIVER (UP) N/A
5 Q21 OG/WH 2.0 DRIVER WINDOW DRIVER (DOWN) N/A
