Assembly-Power Distribution Center C10 (3.2L) Connector End View (D6630J)

Harness-Family: ENGINE

Color: NA

Gender: FEMALE

Part Number: R8220

Part Description: Not Available

Connector No: D6630J

Option: 3.2L

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: Assembly-Power Distribution Center C10 Connector End View (3.2L)
GCWD1079515Courtesy of CHRYSLER

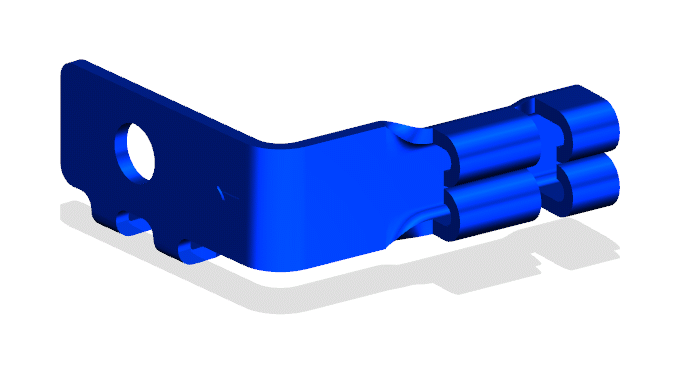

Fig 2: Assembly-Power Distribution Center C10 Isometric View (3.2L)
GCWD1081376Courtesy of CHRYSLER

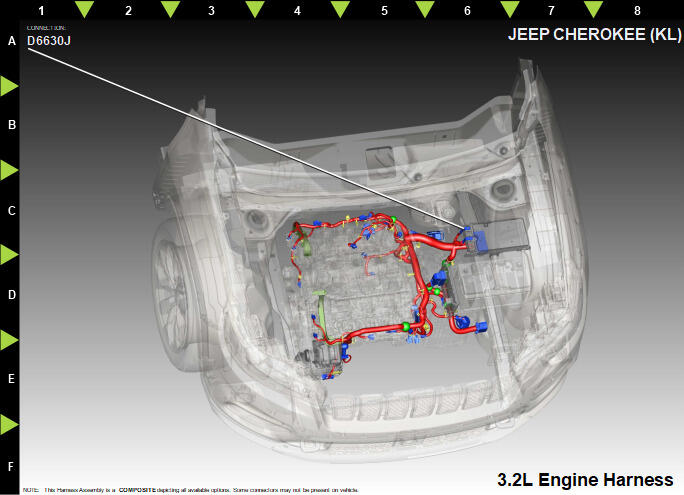

Fig 3: Assembly-Power Distribution Center C10 Component Location View (3.2L)
GCWD1322533Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A951 RD 8.0 FUSED B(+) N/A
