Module, Comfort Seat And Wheel (CSWM): Installation

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.

  1. Install the Comfort Seat and Wheel Module (CSWM) to the seat frame.

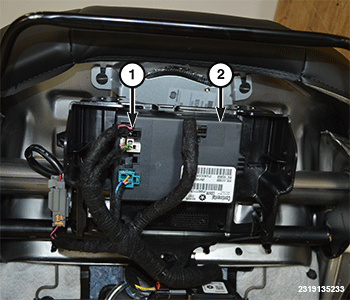

    GC0177038Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wire harness connectors (1) to the module (2).
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
