Sensor, Oil Pressure: Description
WARNING: This page is about a different variant/trim than selected.

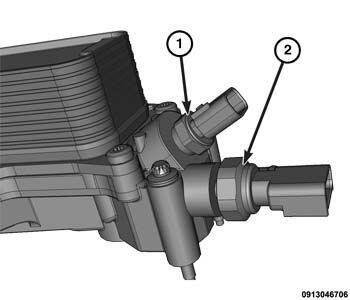

The oil pressure sensor (2) is located on the oil filter housing. The oil pressure sensor is a three wire sensor with a tapered threaded sensor port. The sensor port is mounted to the oil filter housing through an access hole. A thread lock patch seals the oil pressure sensor to the oil filter housing.
