Body, Air Cleaner: Installation

WARNING: This page is about a different variant/trim than selected.
GC0159990Courtesy of CHRYSLER GROUP, LLC
  1. Lubricate the rubber mount sockets (2) with Mopar® Rubber Bushing Installation Lube.
  2. Install the air cleaner housing body (1), pushing down, securing the air cleaner housing body to the rubber mount sockets.

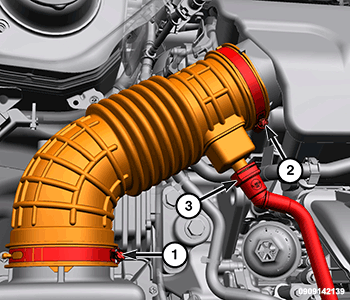

    GC0186386Courtesy of CHRYSLER GROUP, LLC
  3. Install the air inlet hose and securely tighten the clamps (1, 2).
  4. Connect the make-up air hose (3) to the air inlet tube.
    GC0159742Courtesy of CHRYSLER GROUP, LLC
  5. Install the engine cover (1) to the mounting posts (2).
