Sensor, Oil Pressure: Installation

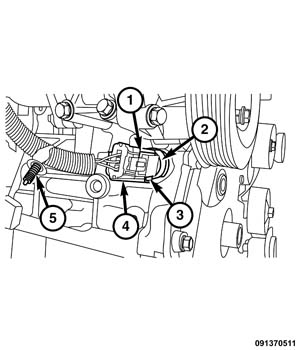

GC0156354Courtesy of CHRYSLER GROUP, LLC
  1. Install the oil pressure sensor (2) into the engine block and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  2. Install and lock the electrical connector (4).
  3. Engage the harness retainer (5) into the engine block.
  4. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
  5. Remove the support and lower the vehicle.
  6. Reconnect the negative battery cable.
