Home >> Jeep >> 2021 >> Cherokee Latitude, FWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> 2.4L Engine (Service Information) >> Engine Block >> Damper, Vibration >> Removal

Damper, Vibration: Removal

  1. Remove accessory drive belts. Refer to BELT, SERPENTINE, REMOVAL .

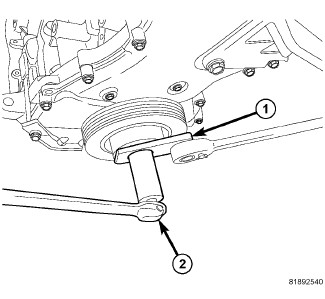

    GC0121272Courtesy of CHRYSLER GROUP, LLC
  2. Install Damper holder (special tool #9707, Holder, Vibration Damper) (1).
  3. Remove the crankshaft damper from the crankshaft.
