Plug, Ring Gear Shaft: Installation
WARNING: This page is about a different variant/trim than selected.
- Using the clean lint free cloth, wipe the circumference of the plug hole free of debris and oil.

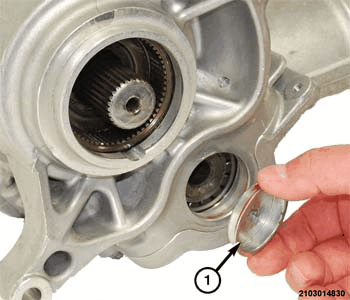

- Place a NEW
plug (1) into the hole in the PTU.

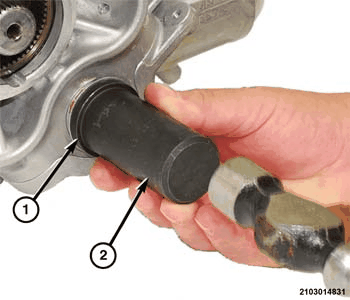

- Using tool (special tool #6342, Installer, Seal), drive the new plug into the hole in the PTU until the lip of the plug is flush against the outer surface of the PTU.
- Install the PTU in the vehicle. Refer to INSTALLATION .
- Verify that the PTU fluid is at the specified level. Refer to STANDARD PROCEDURE .
- Road test the vehicle to verify the repair.
