Shroud, Steering Column, Lower: Installation

  1. Push the column tilt lever downward.
  2. Engage the wire harness routing clip (1) to the lower shroud.
  3. Position the lower shroud to the gap hider and engage the clips.
  4. Install the lower shroud into the upper shroud, snapping the shrouds together.

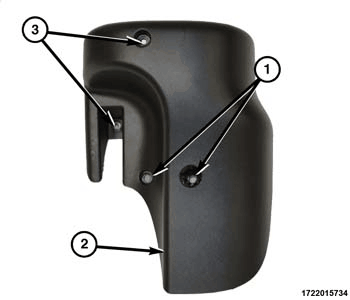

    GC0159670Courtesy of CHRYSLER GROUP, LLC
  5. Install the lower shroud screws (1), (3).
