Sensor, Oil Pressure: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the upper intake manifold and lower intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL .

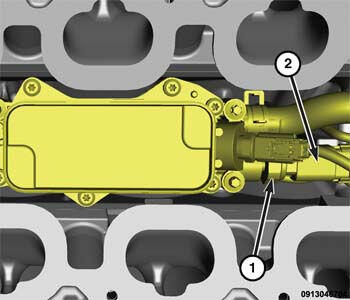

    GC0161843Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the oil pressure sensor wire harness connector (2).
  3. Remove the oil pressure sensor (1) from the oil filter housing.
