Instrument Panel Cluster Lens

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the Instrument Panel Cluster (IPC) from the instrument panel. Refer to MODULE, INSTRUMENT PANEL CLUSTER (IPC), REMOVAL .

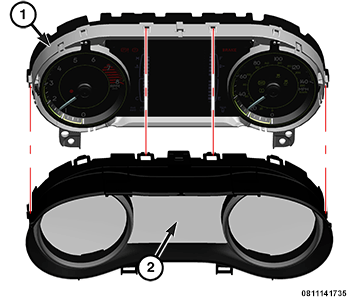

    GC0192263Courtesy of CHRYSLER GROUP, LLC
  3. Working around the perimeter of the IPC housing, disengage each of the latches that secure the cluster lens (2), to the IPC housing (1).
  4. Carefully separate and remove the lens from the face of the IPC.
