Module, Forward Facing Camera (FFCM): Removal

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to align the PROXI configuration data into the new ECU. Follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under Body Control Module (BCM) Miscellaneous Functions menu.

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC

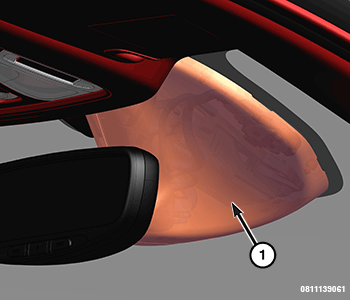

Separate the interior rear view mirror trim covers (1) to gain access to the Forward Facing Camera (FFC).

Courtesy of CHRYSLER GROUP, LLC

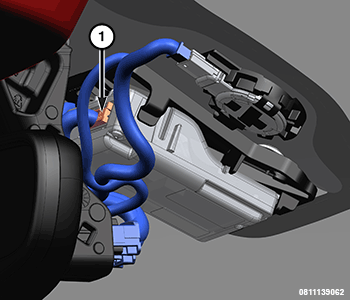

Disconnect the wire harness connector (1) from the FFC.

Courtesy of CHRYSLER GROUP, LLC

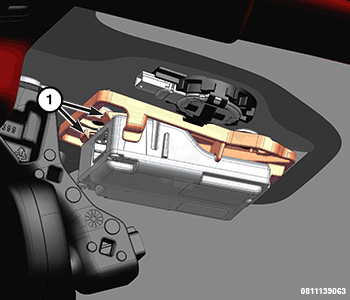

Depress the FFC bracket tension tabs (1) to release the FFC.

Courtesy of CHRYSLER GROUP, LLC

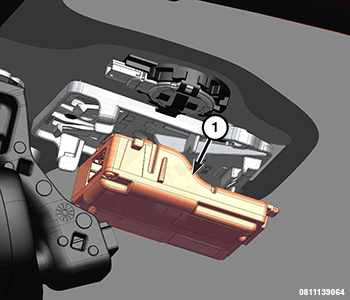

Remove the FFC (1) from the vehicle
