Module, Electric Park Brake (EPBM): Installation

Courtesy of CHRYSLER GROUP, LLC

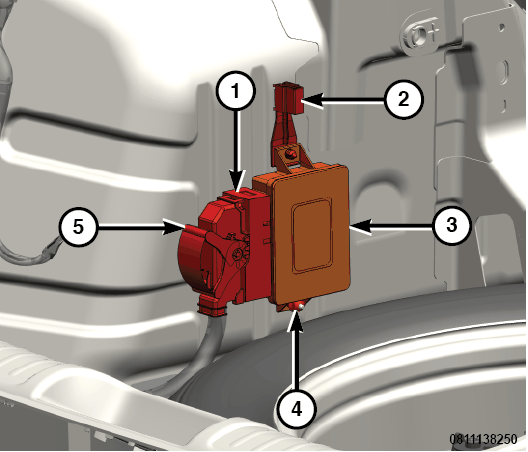

Position Electric Park Brake (EPB) module (3) on the mounting stud.
Install the EPB fastener (4) to the stud and tighten the nut securely.
Push the retainer (2) on the stud.
Connect the wire harness connector (1) to the EPB module (3). Make sure the locking lever (5) is securely in place, downward toward the bottom.
Install the left rear lower quarter trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
Install the load floor cargo panel and left storage tray, if equipped. Refer to LOAD FLOOR, CARGO, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
